Slip Indicator Light Circuit: Wiring Diagram

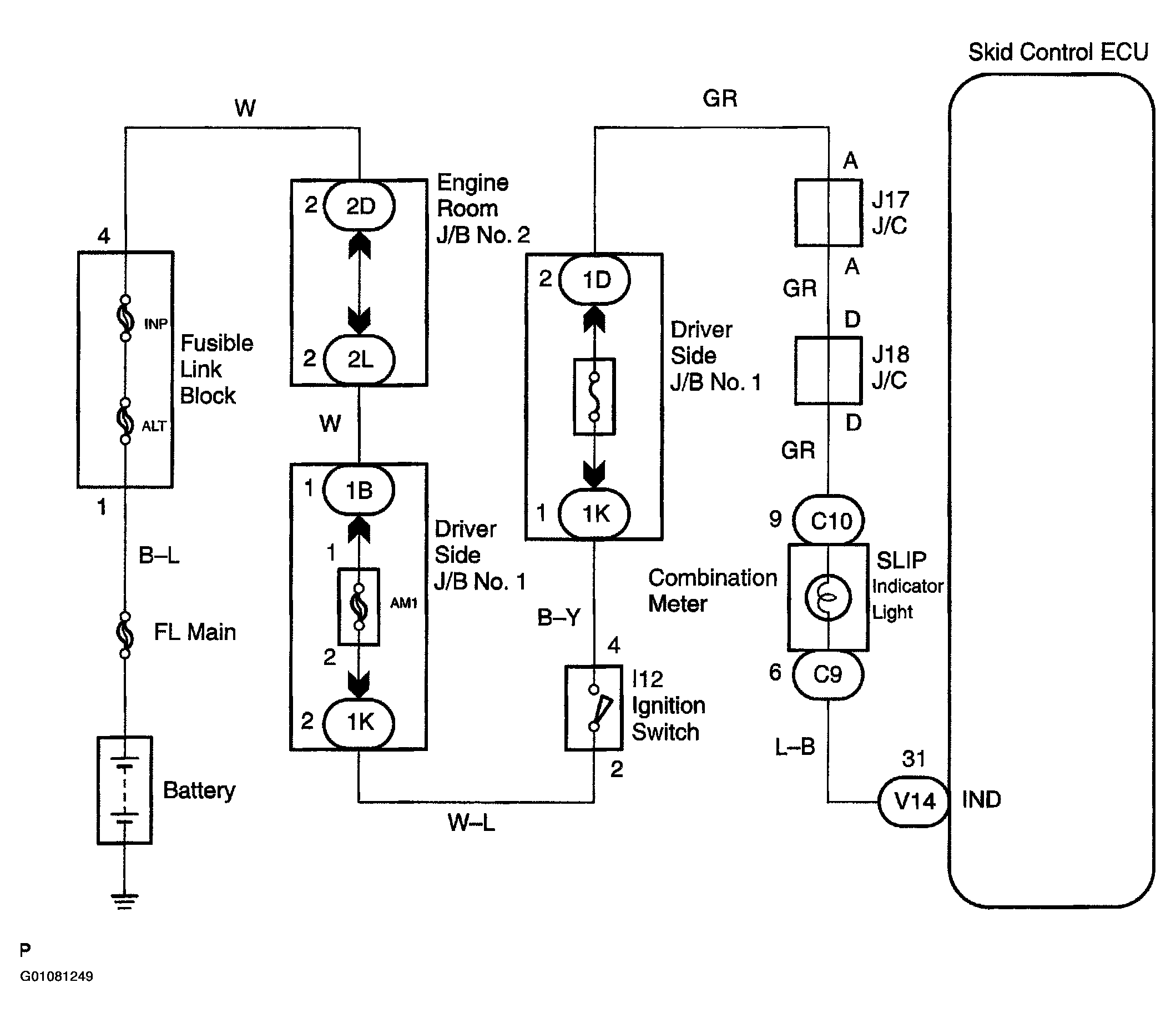

Fig 1: SLIP Indicator Light Circuit

G01081249

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
