Circuit Description

If any trouble occurs in the ECM control system, the ECU prohibits ABS & VSC control.

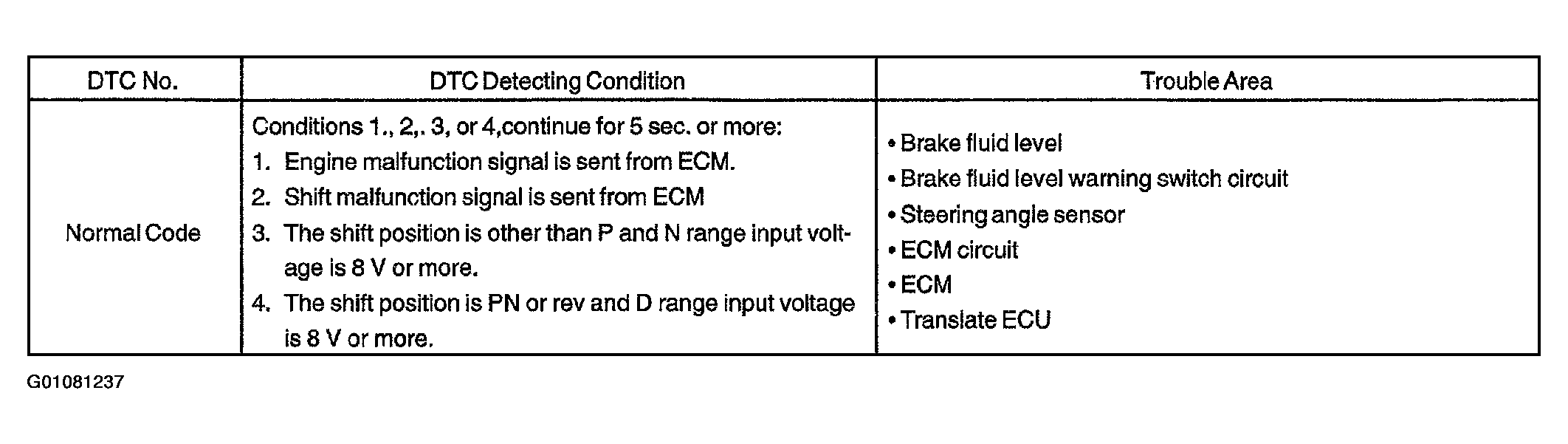

Fig 1: Identifying Normal Code Trouble Areas

G01081237

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
