DTC C1350/51 Abs & VSC Actuator Pump Motor Failure: Wiring Diagram

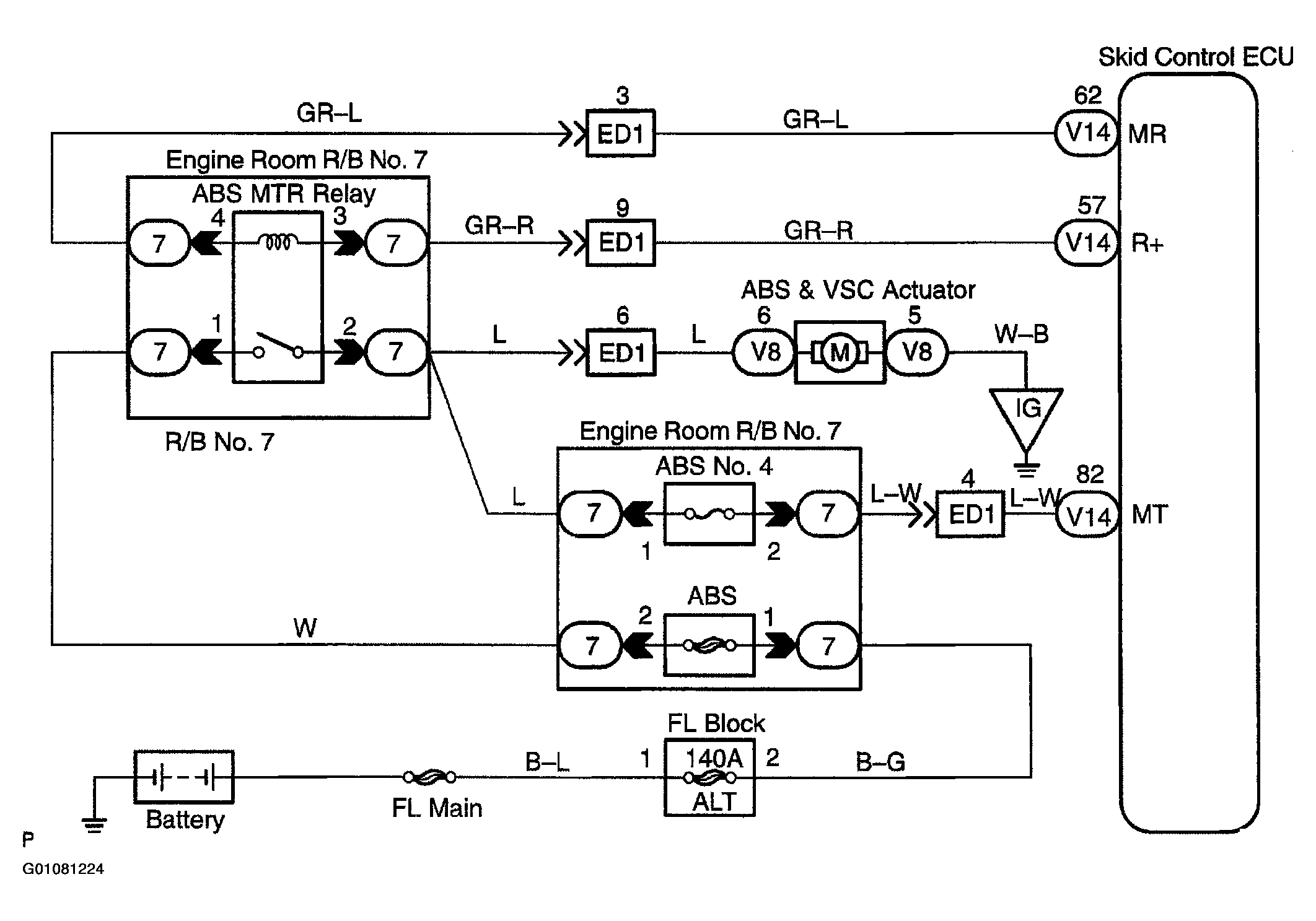

Fig 1: ABS & VSC Actuator Pump Motor Circuit

G01081224

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
