DTC C1249/58 Stop Light Switch Circuit: Wiring Diagram

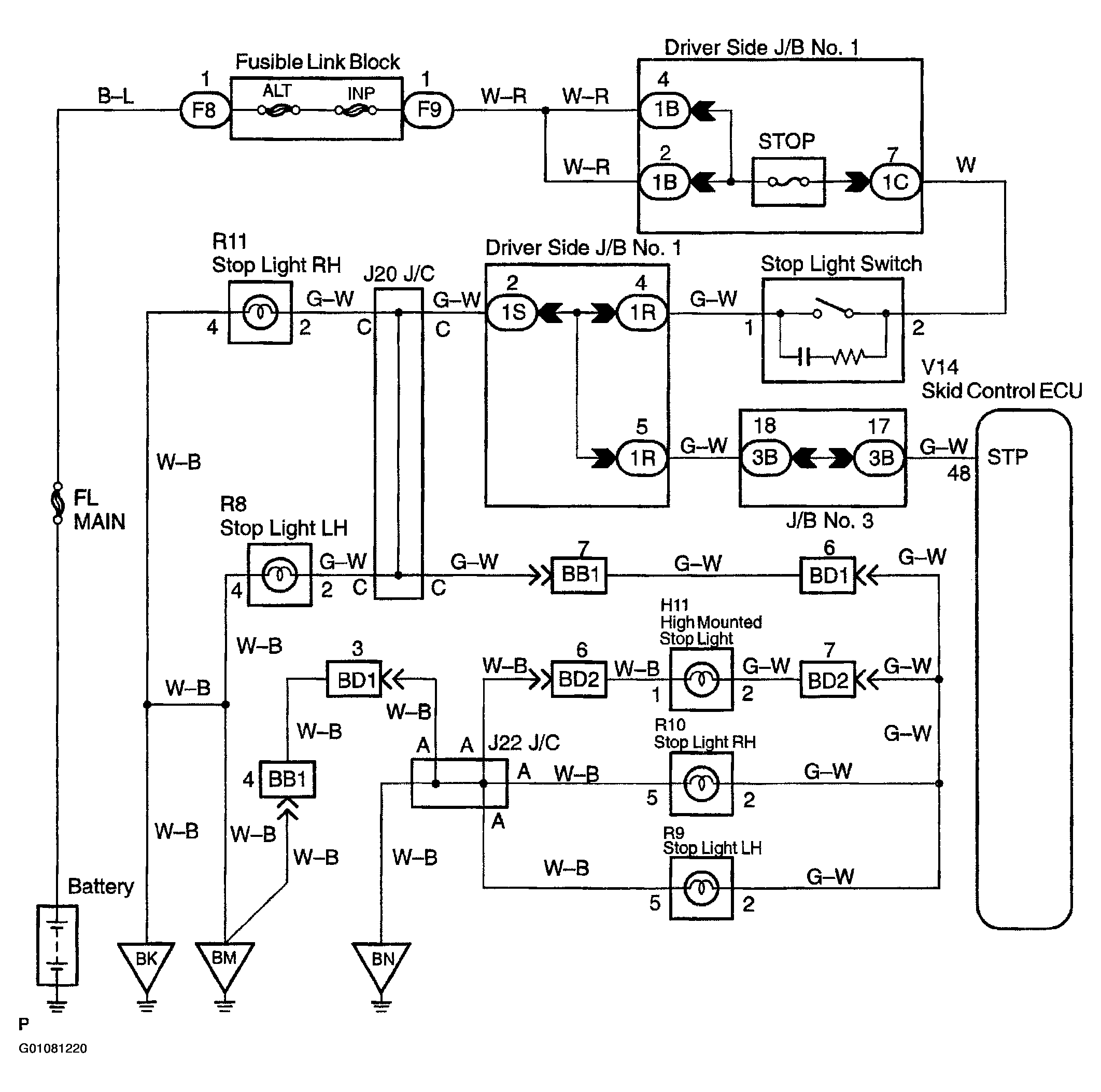

Fig 1: Stop Light Switch Circuit

G01081220

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
