DTC C1208/54 Steering Angle Sensor Circuit: Wiring Diagram

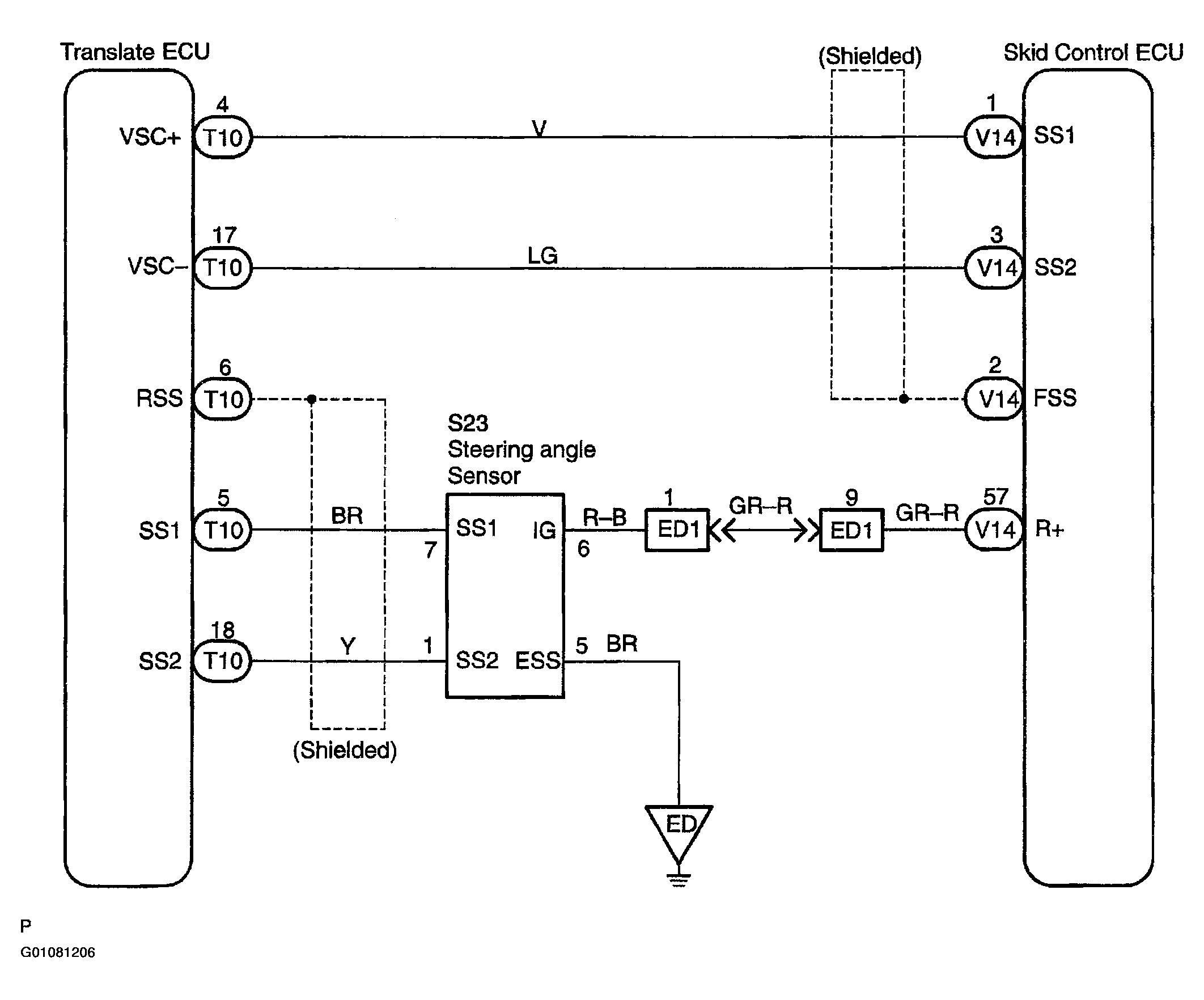

Fig 1: Steering Angle Sensor Circuit

G01081206

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
