DTC C0365/43 Deceleration Sensor Circuit: Wiring Diagram

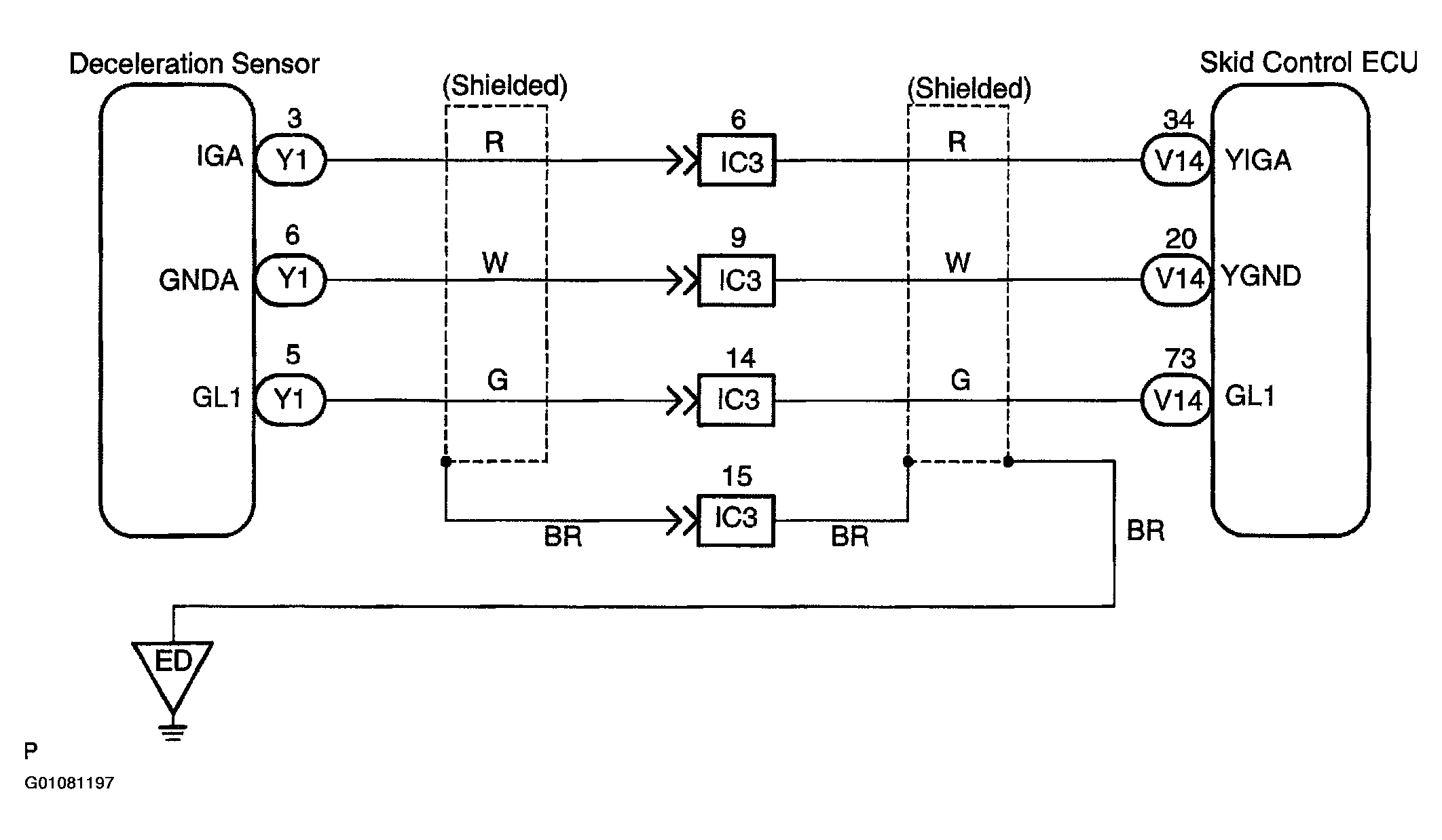

Fig 1: Deceleration Sensor Circuit

G01081197

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
