Home >> Toyota >> 2001 >> Sienna CE >> Repair and Diagnosis >> Brakes >> Anti-Lock Brakes >> Abs With EBD & BA & TRAC & VSC System - Diagnostics >> Circuit Inspection >> DTC C0365/43 Deceleration Sensor Circuit >> Circuit Description

Circuit Description

Deceleration sensor is combined with yaw rate sensor.

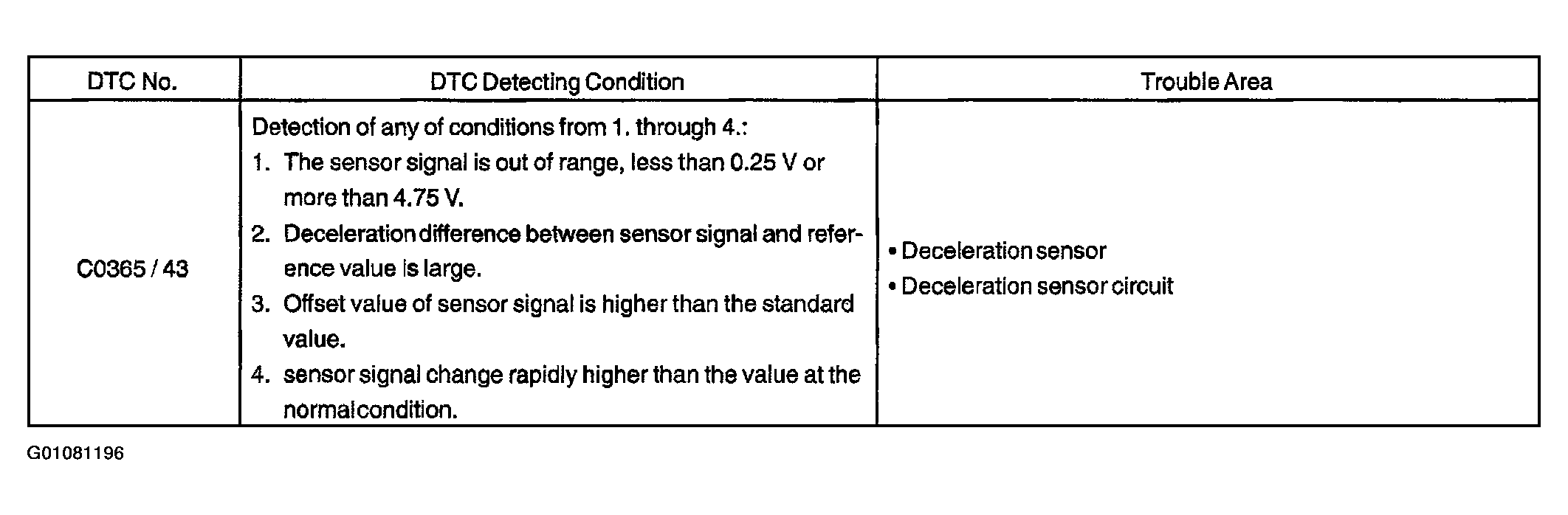

Fig 1: Identifying DTC C0365/43 Trouble Areas
G01081196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
