DTC C0278/11 Abs Sol Relay Circuit: Wiring Diagram

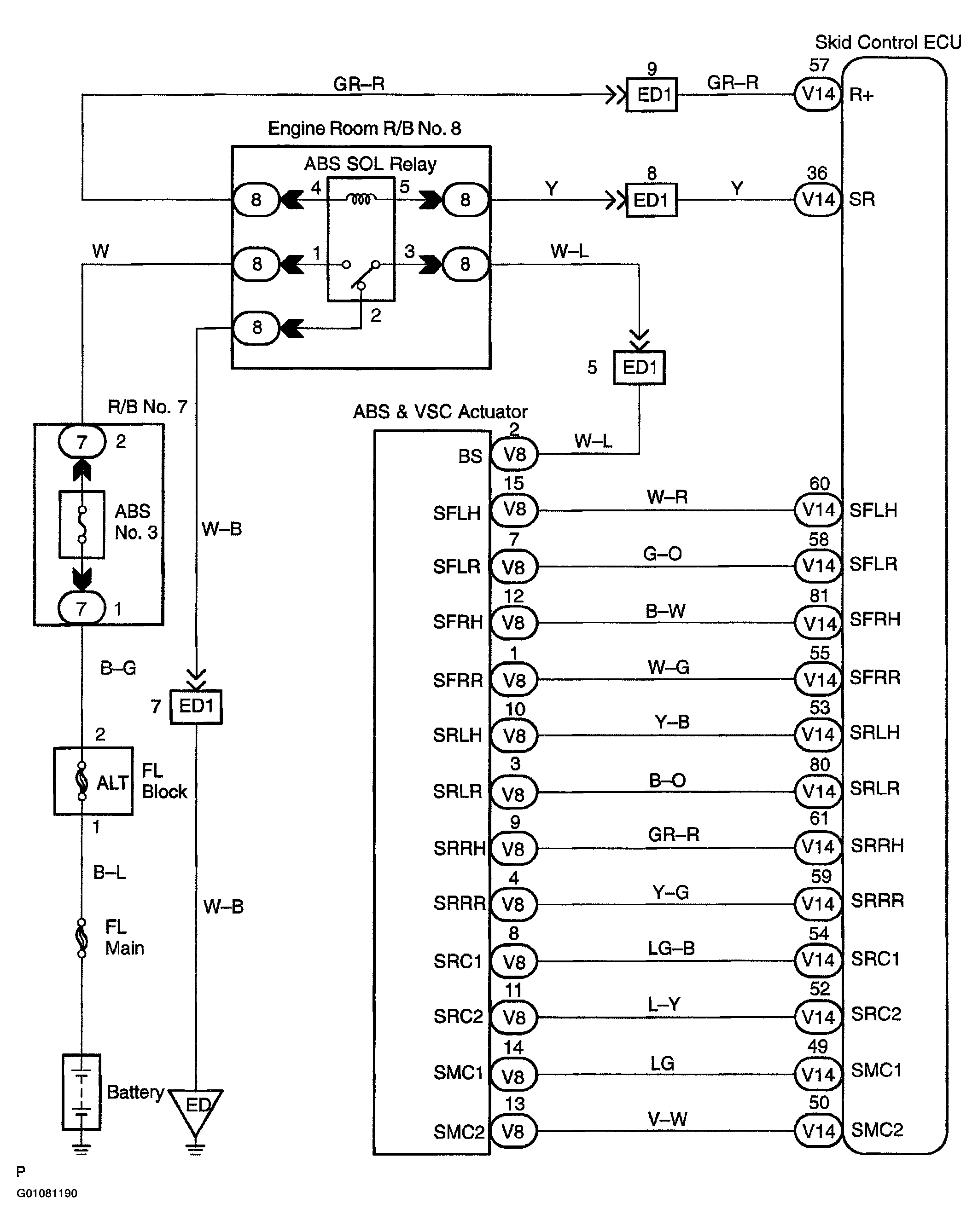

Fig 1: ABS SOL Relay Circuit

G01081190

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
