Circuit Description

This relay supplies power to each ABS solenoid. After the ignition switch is turned ON, if the initial check is OK, the relay goes on.

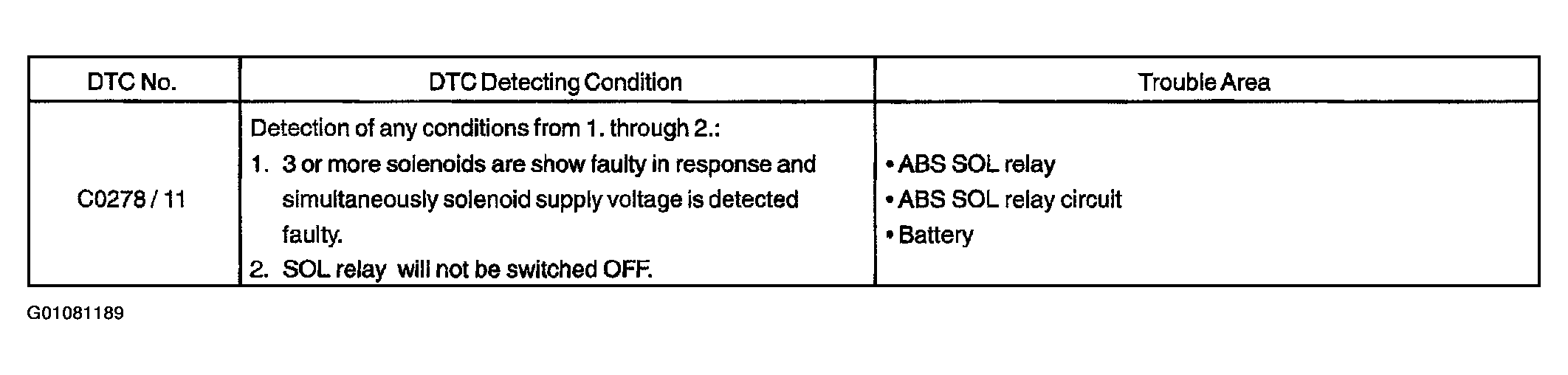

Fig 1: Identifying DTC C0278/11 Trouble Areas
G01081189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
