Circuit Description

This solenoid goes on when signals are received from the ECU and controls the pressure acting on the wheel cylinders thus controlling the braking force.

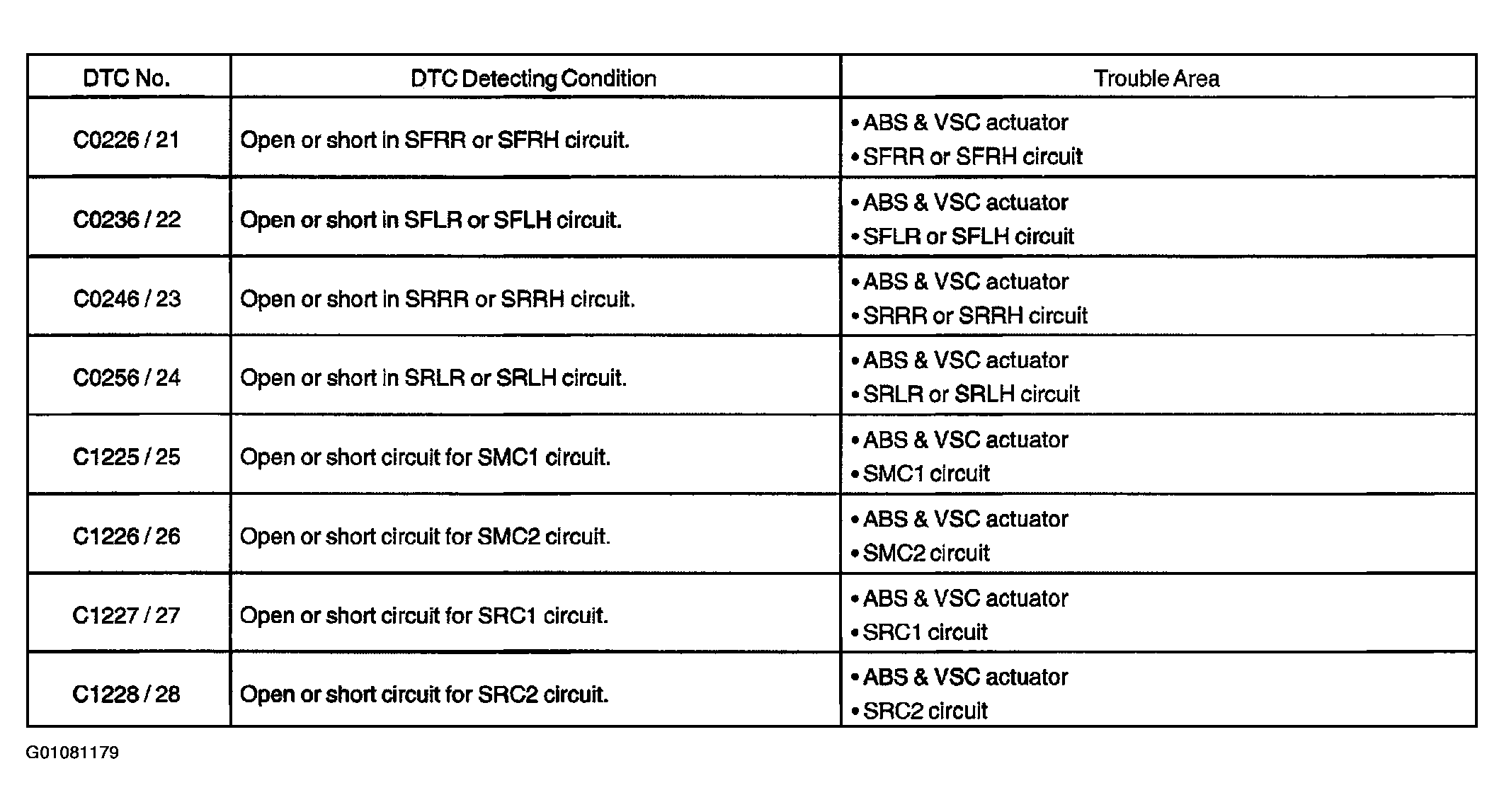

Fig 1: Identifying ABS & VSC Actuator DTCs
G01081179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
