DTC C0200/31-C1331/36, DTC C1332/38 & C1333/39 Speed Sensor Circuit: Wiring Diagram

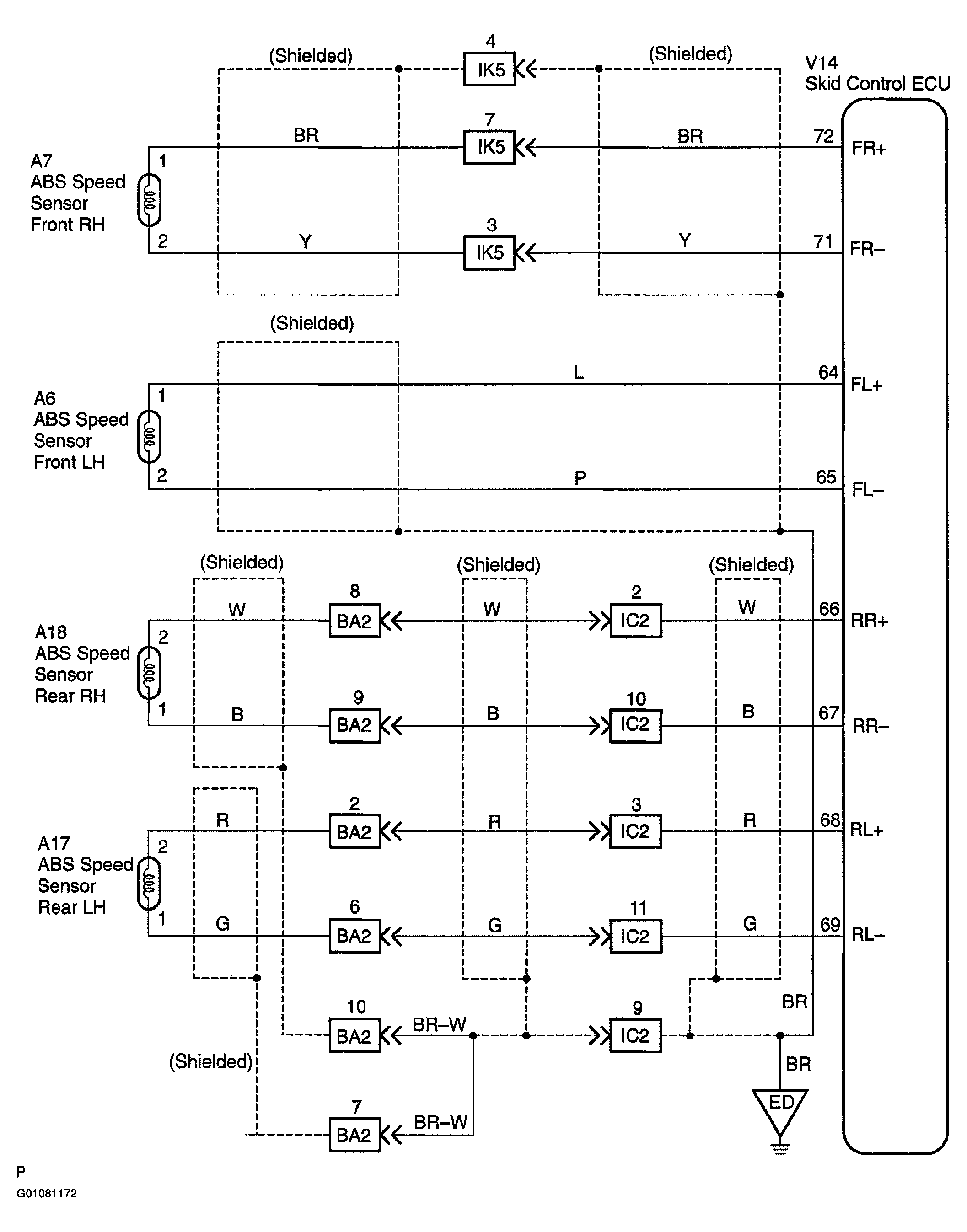

Fig 1: Speed Sensor Circuit

G01081172

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
