DTC 53 ECM Communication Circuit Malfunction: Wiring Diagram

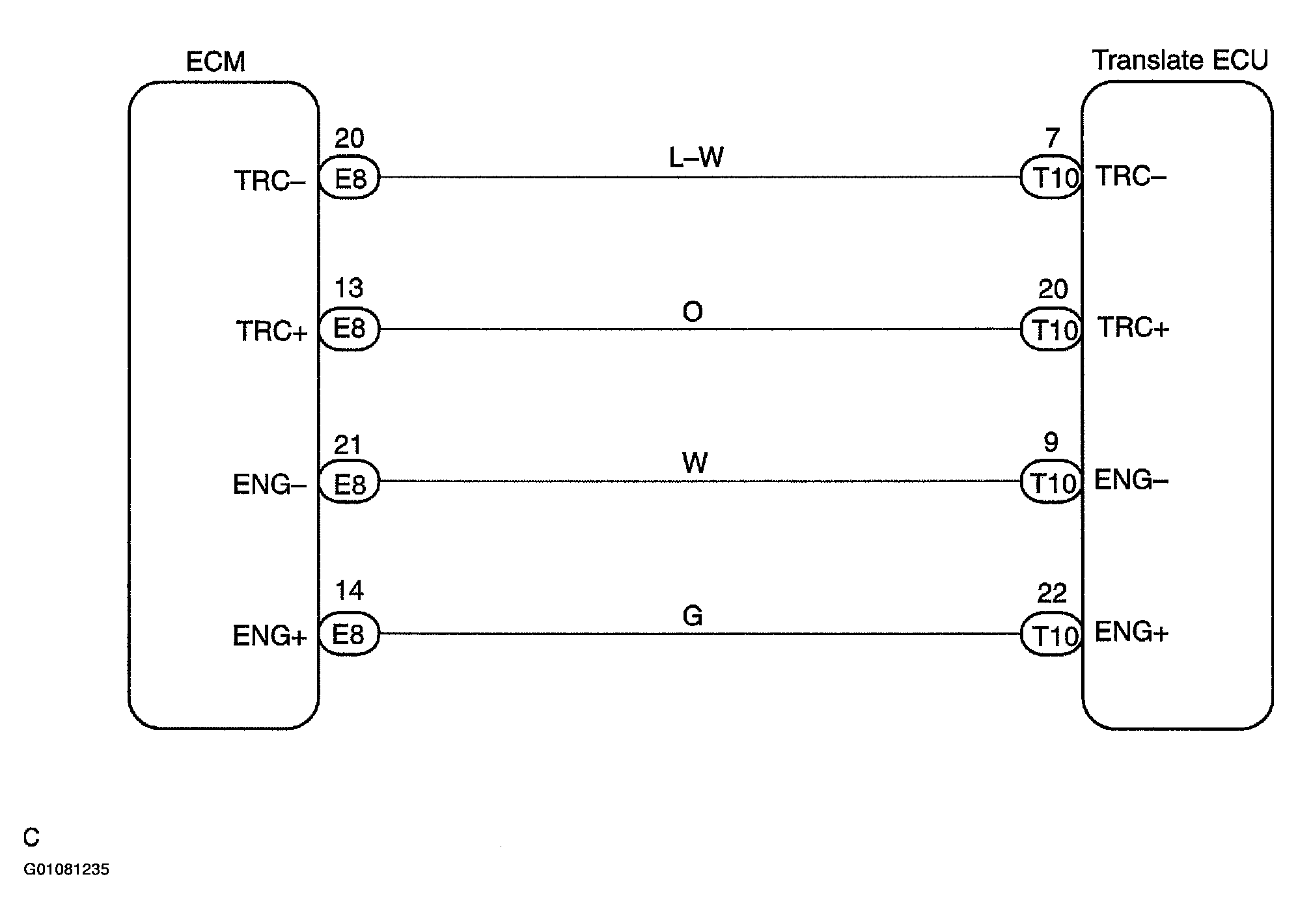

Fig 1: ECM Communication Circuit

G01081235

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
