Inspection Procedure

  1. Check Translate ECU communication  .

    Reference: inspection using oscilloscope  .

    1. Remove the Translate ECU.
    2. Connect the oscilloscope to each of the terminals ENG+ or TRC+ and GND of the Translate ECU harness side connector.

    Start the engine, and check the signal waveform.

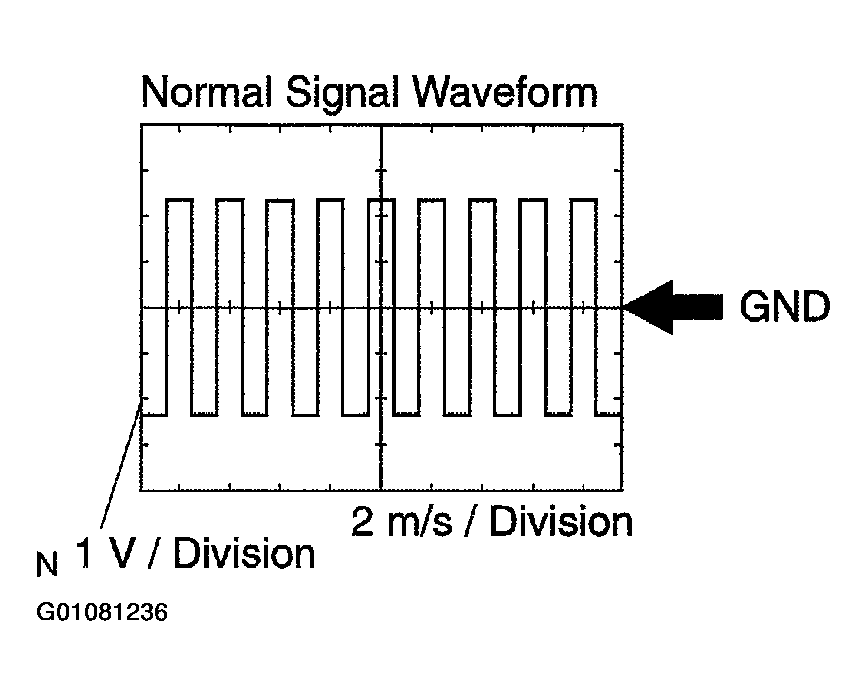

    Fig 1: Identifying Normal Signal Waveform
    G01081236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: Check and replace Translate ECU  .
    2. NG: Go to next step  .
  2. Check for open and short circuit in harness and connector between each of terminals ENG+, ENG-, TRC+ and TRC- of Translate ECU and ECM. See  HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE  .
    1. OK: Check and replace ECM  .
    2. NG: Repair or replace harness or connector  .
