Circuit Description

The circuit is used to send TRAC & VSC control information from the Translate ECU to the ECM (TRC+, TRC-), and engine control information from the ECM to the Translate ECU (ENG+, ENG-).

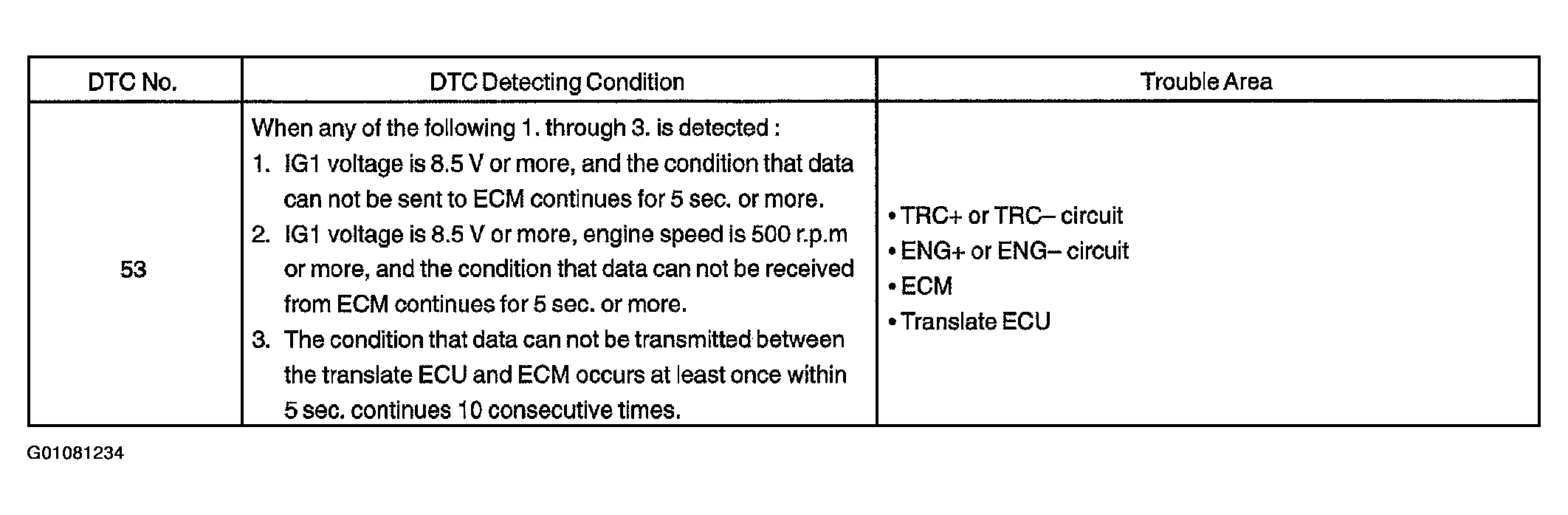

Fig 1: Identifying DTC 53 Trouble Areas

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
