Circuit Description

The Skid Control ECU receives engine revolution speed signals (NEO signal) from the ECM.

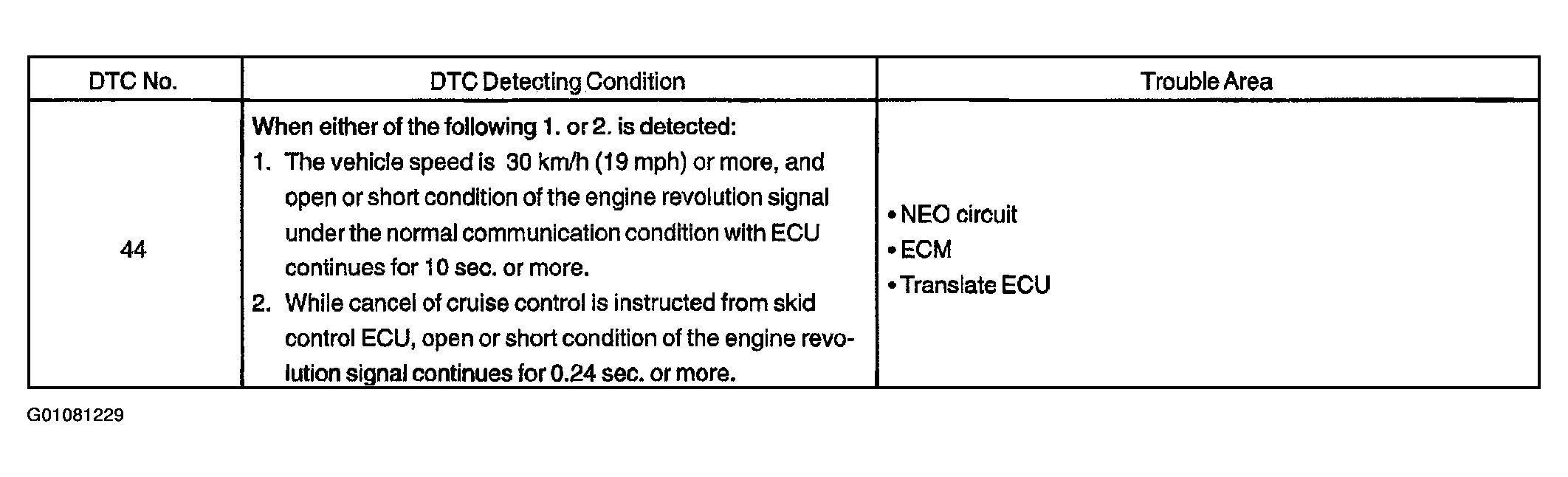

Fig 1: Identifying DTC 44 Trouble Areas

G01081229

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
