Brake Warning Light Circuit: Wiring Diagram

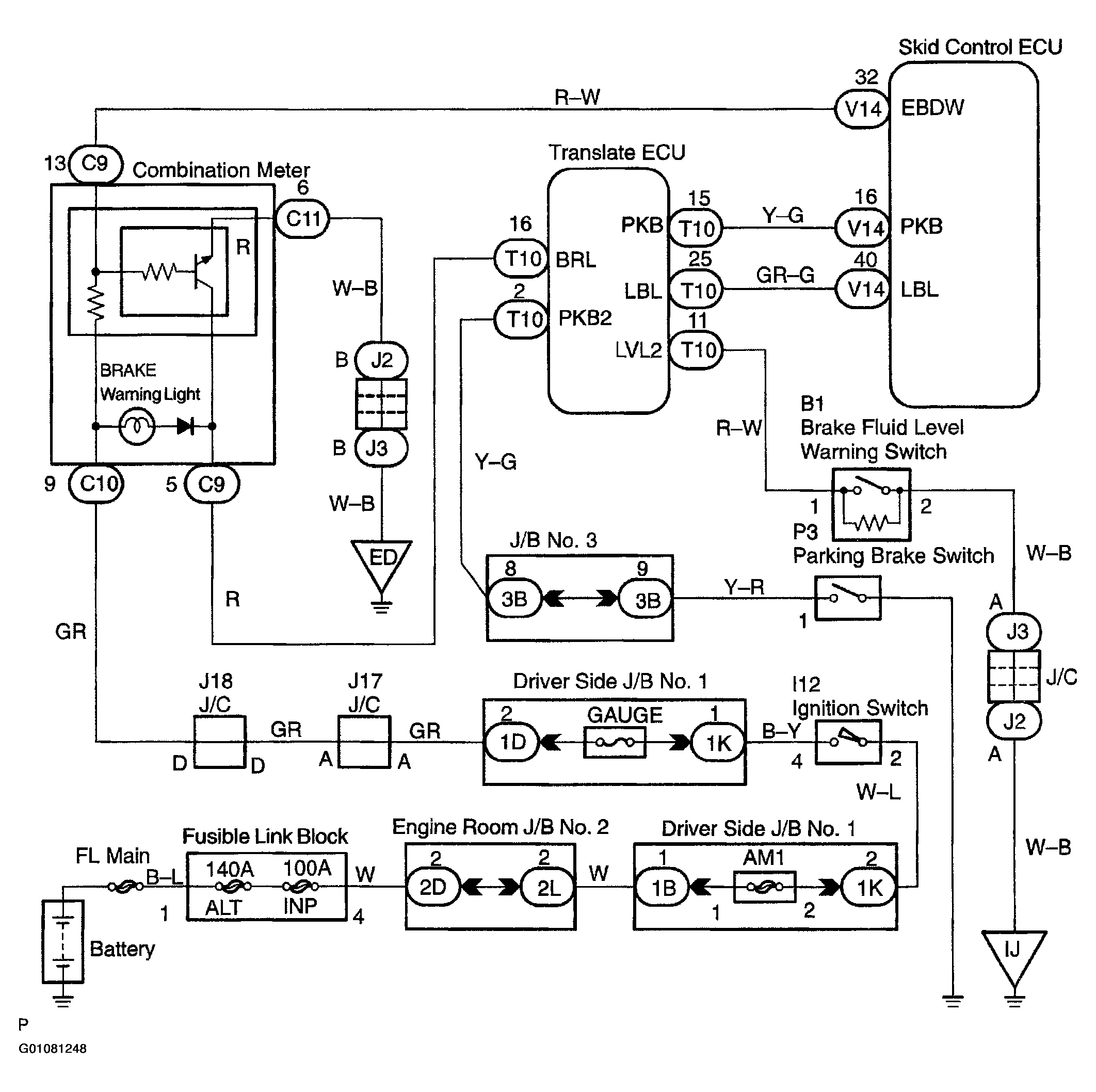

Fig 1: Brake Warning Light Circuit

G01081248

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
