Always On Malfunction In Ecu VSC Warning Light Circuit: Wiring Diagram

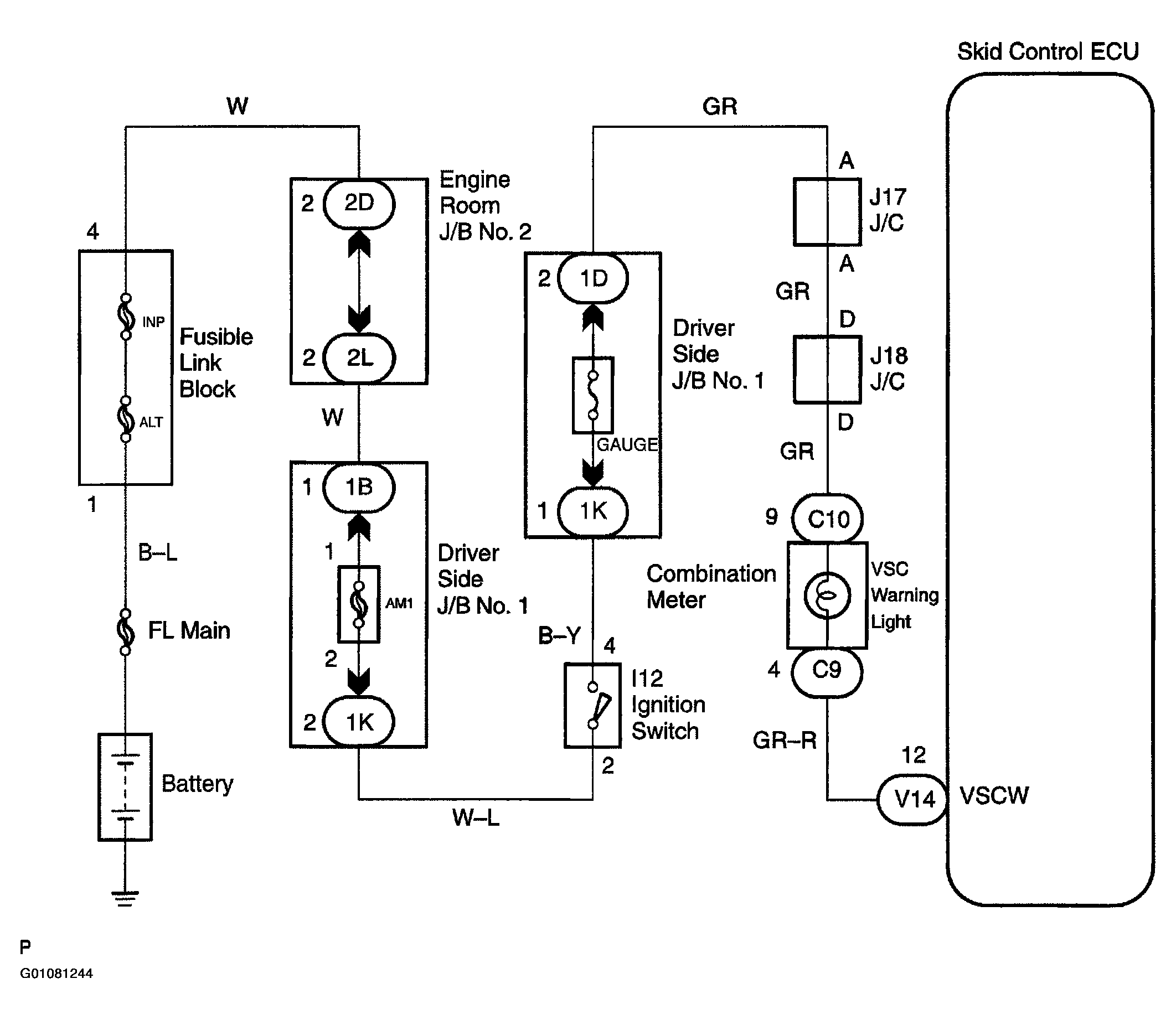

Fig 1: VSC Warning Light Circuit
G01081244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
