Home >> Toyota >> 2001 >> RAV4 Base, AWD, Standard >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Disc Brakes & Drum Brakes >> Overhaul >> Rear Brake Calipers

Rear Brake Calipers

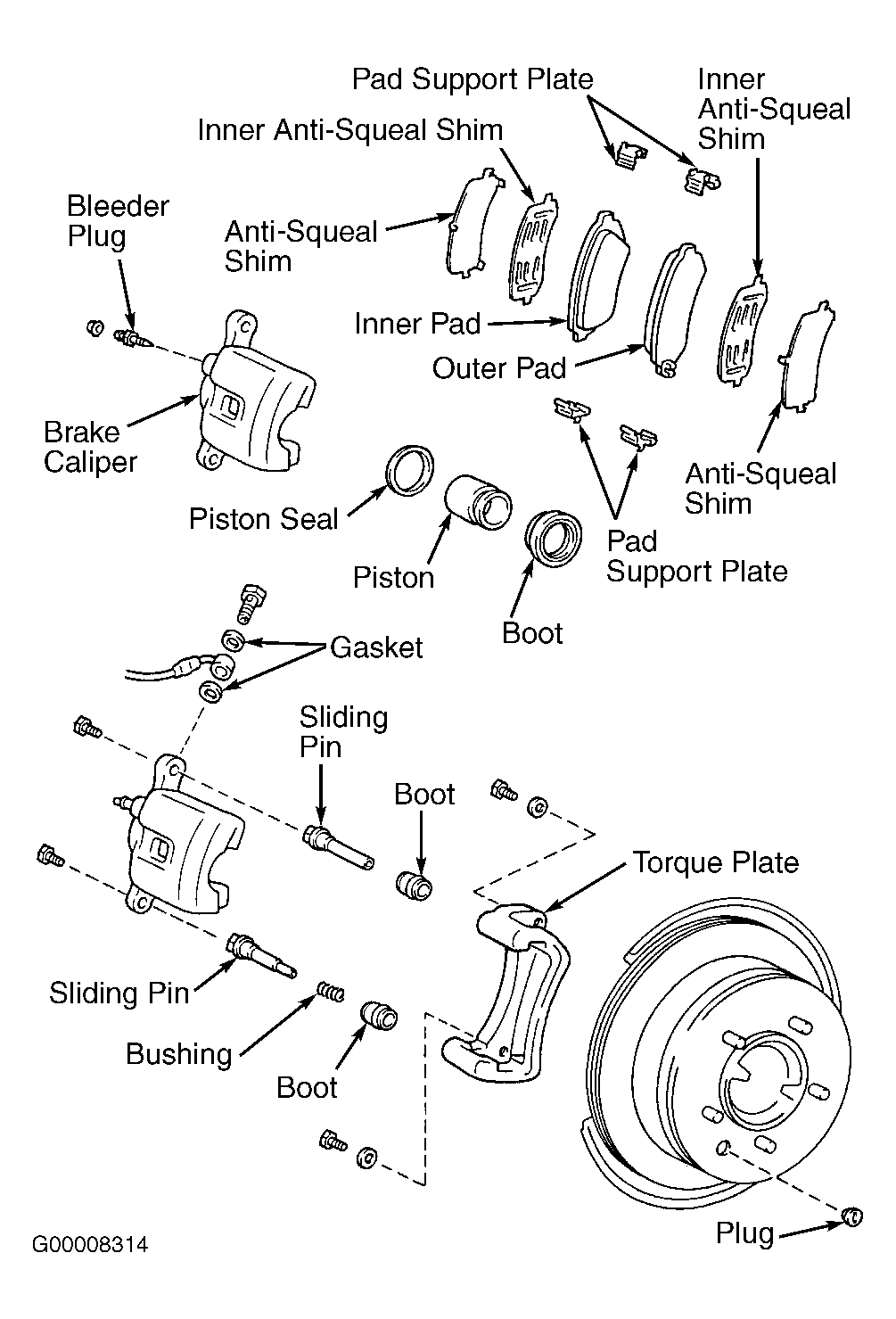

NOTE: For overhaul of rear brake calipers, see Figure
