Engine Coolant Temperature Gauge Resistance

Turn ignition off. Remove instrument cluster. Using ohmmeter, check gauge resistance between appropriate terminals on back of instrument cluster. See ENGINE COOLANT TEMPERATURE GAUGE RESISTANCE table. See Fig 1-Fig 5 . If resistance is not as specified, replace temperature gauge. If resistance is as specified, repair open or short circuit in wiring harness. See WIRING DIAGRAMS .

ENGINE COOLANT TEMPERATURE GAUGE RESISTANCE

Application & Terminals

Ohms

Avalon & MR2 ⁽¹⁾

A & B

250

C & D

250

Camry & Camry Solara

A & B

176

A & C

B & C

230

Celica

⁽²⁾

Corolla

A & B

A & C

176

B & C

230

⁽¹⁾	Pointer set to stopper pin.

⁽²⁾	Information not available from manufacturer.

Fig 1: Identifying Instrument Cluster Gauge Terminals (Avalon)

Fig 2: Identifying Fuel & Temperature Gauge Terminals (Camry & Camry Solara)

Fig 3: Identifying Speedometer & Tachometer Terminals (Celica)

Fig 4: Identifying Fuel Gauge Terminals (Corolla)

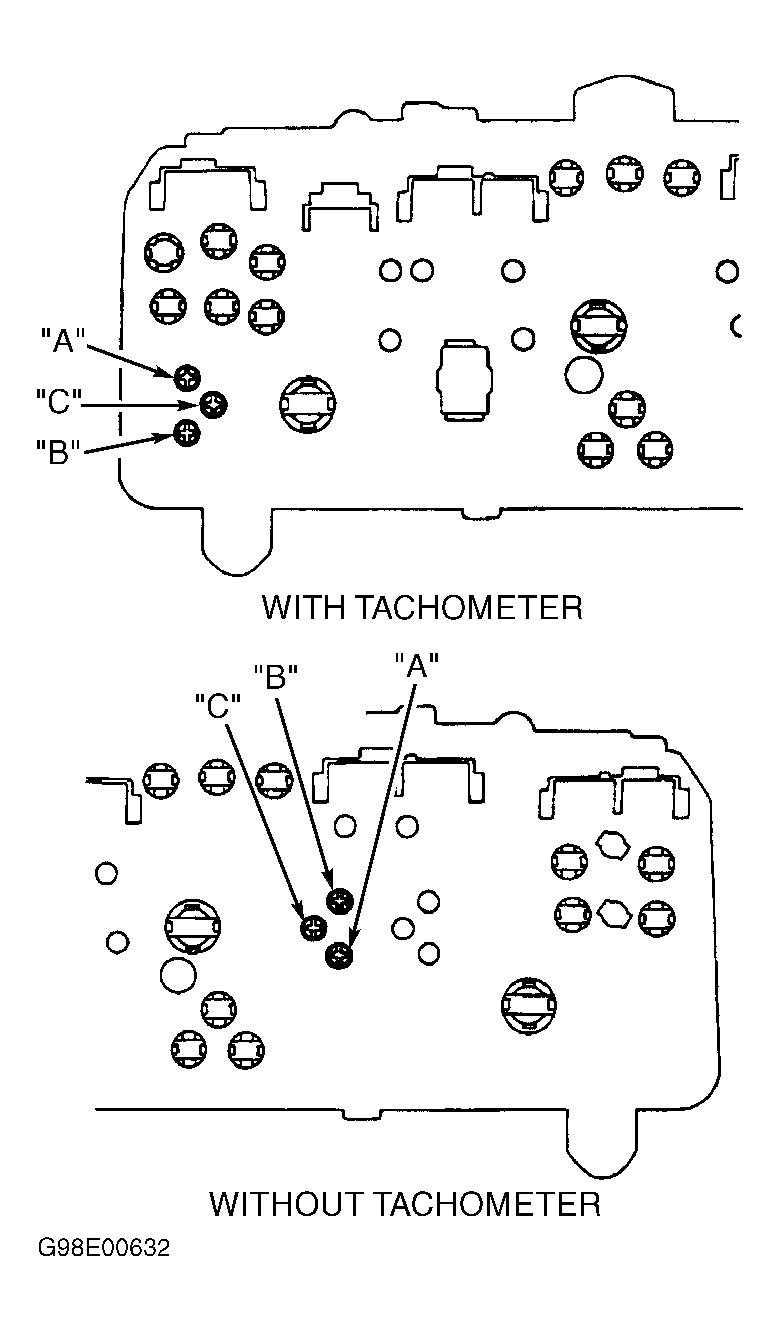

Fig 5: Identifying Temperature Gauge Terminals (Corolla)
