MR2 (Driver's Side)

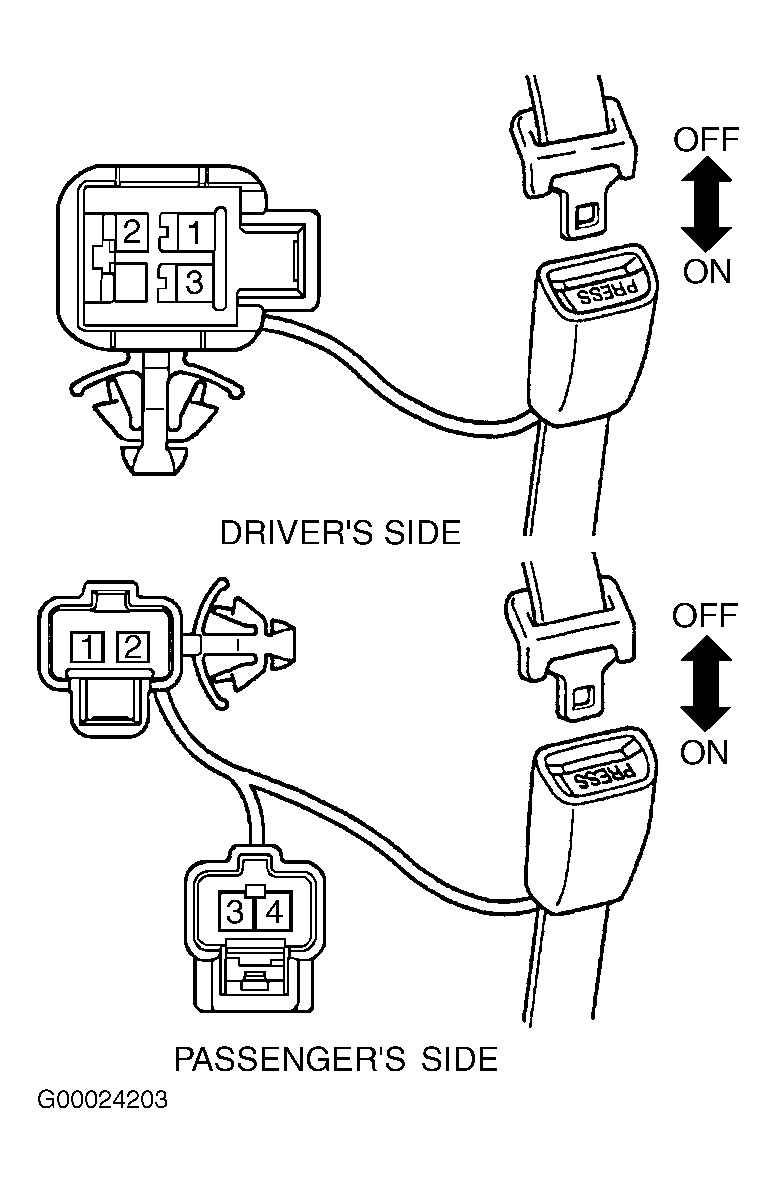

  1. Disconnect driver's seat belt buckle switch 4-pin connector. See Figure. Check for continuity between seat belt buckle switch terminals No. 1 and 3. With seat belt buckle switch on (belt fastened), continuity should exist. With seat belt buckle switch off (belt unfastened), continuity should not exist. If continuity is not as specified, replace seat belt. If continuity is as specified, go to next step.
  2. Check for continuity between seat belt buckle switch terminals No. 1 and 2. With seat belt buckle switch on (belt fastened), continuity should not exist. With seat belt buckle switch off (belt unfastened), continuity should exist. If continuity is not as specified, replace seat belt.
