Light Control Rheostat: Celica

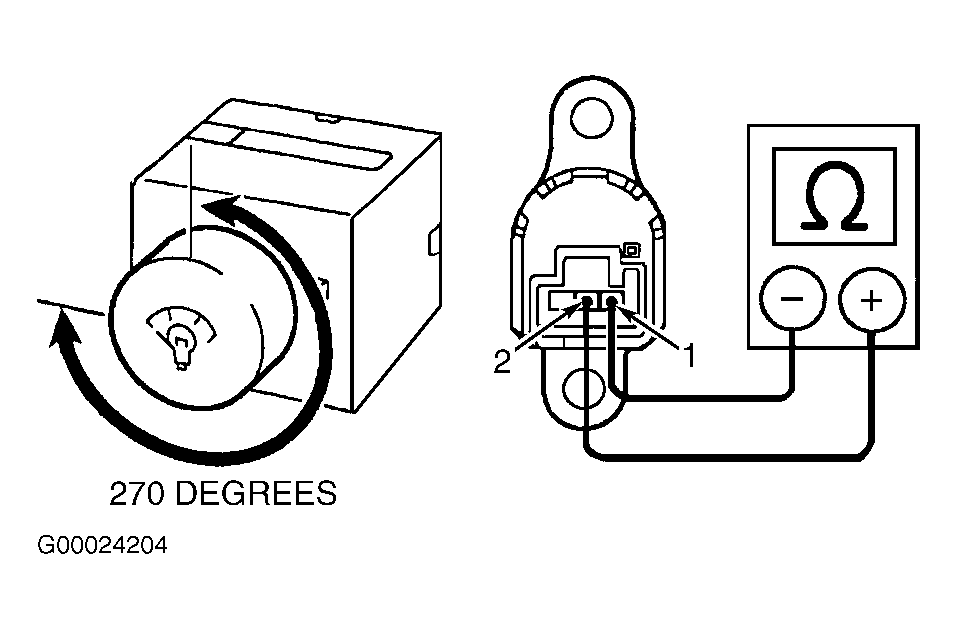

Remove light control rheostat. Using DVOM, measure resistance between rheostat terminals No. 1 and 2. See Fig 1. Resistance should drop from 10 k/ohms to zero ohms as rheostat is turned from DARK (counter clockwise) to LIGHT (clockwise) positions. If resistance is not as specified, replace light control rheostat.
