Light Control Rheostat: MR2

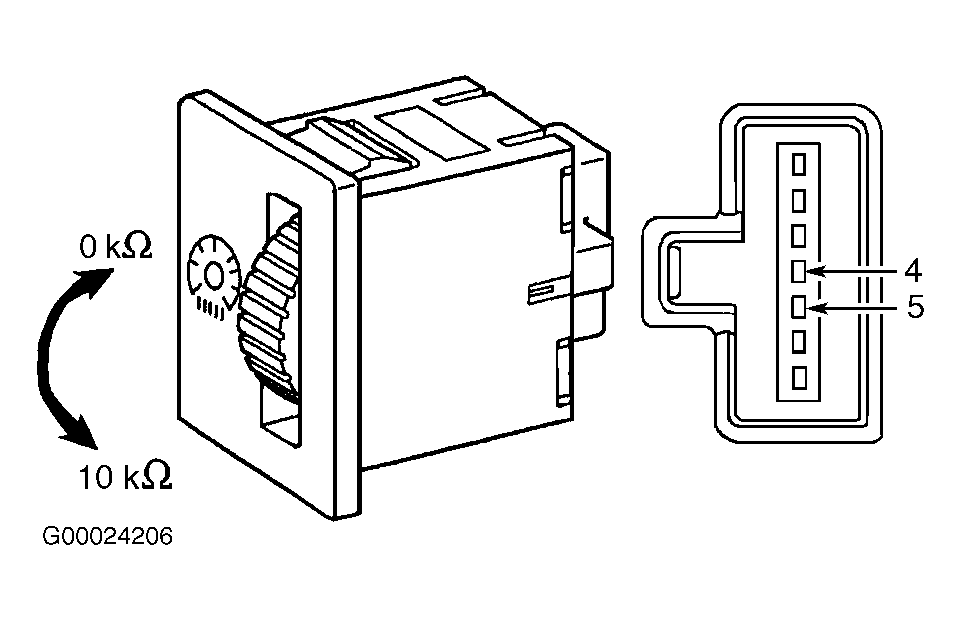

Remove light control rheostat. Using DVOM, measure resistance between rheostat terminals No. 4 and 5. See Fig 1. Resistance should drop from 10 k/ohms to zero ohms as rheostat is turned from DARK to LIGHT positions. If resistance is not as specified, replace light control rheostat.
