Shift Solenoid SLT
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Toyota RAV4, 2002 Toyota Highlander, 2002 Toyota Camry, 2002 Lexus RX 300, and 2001 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

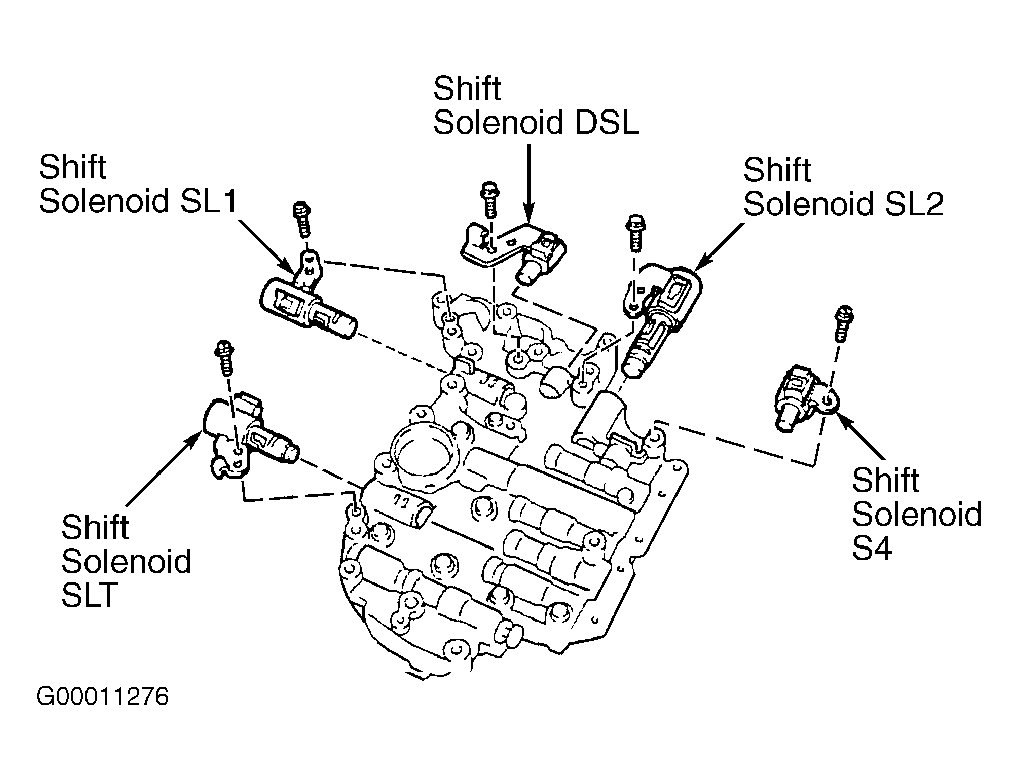

ECM controls line pressure by sending a predetermined duty ratio to shift solenoid SLT, modulating line pressure and generating throttle pressure. Shift solenoid SLT is used to precisely and minutely modulate and generate line pressure according to accelerator pedal effort, or engine power output detected. Shift solenoid SLT is located on transaxle valve body. See Fig 1.
