Automatic Transaxle Fluid Temperature Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Toyota RAV4, 2002 Toyota Highlander, 2002 Toyota Camry, 2002 Lexus RX 300, and 2001 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

ATF temperature sensor (located on wiring harness inside transaxle oil pan) converts fluid temperature into a resistance value, which is input to ECM. See Fig 2.

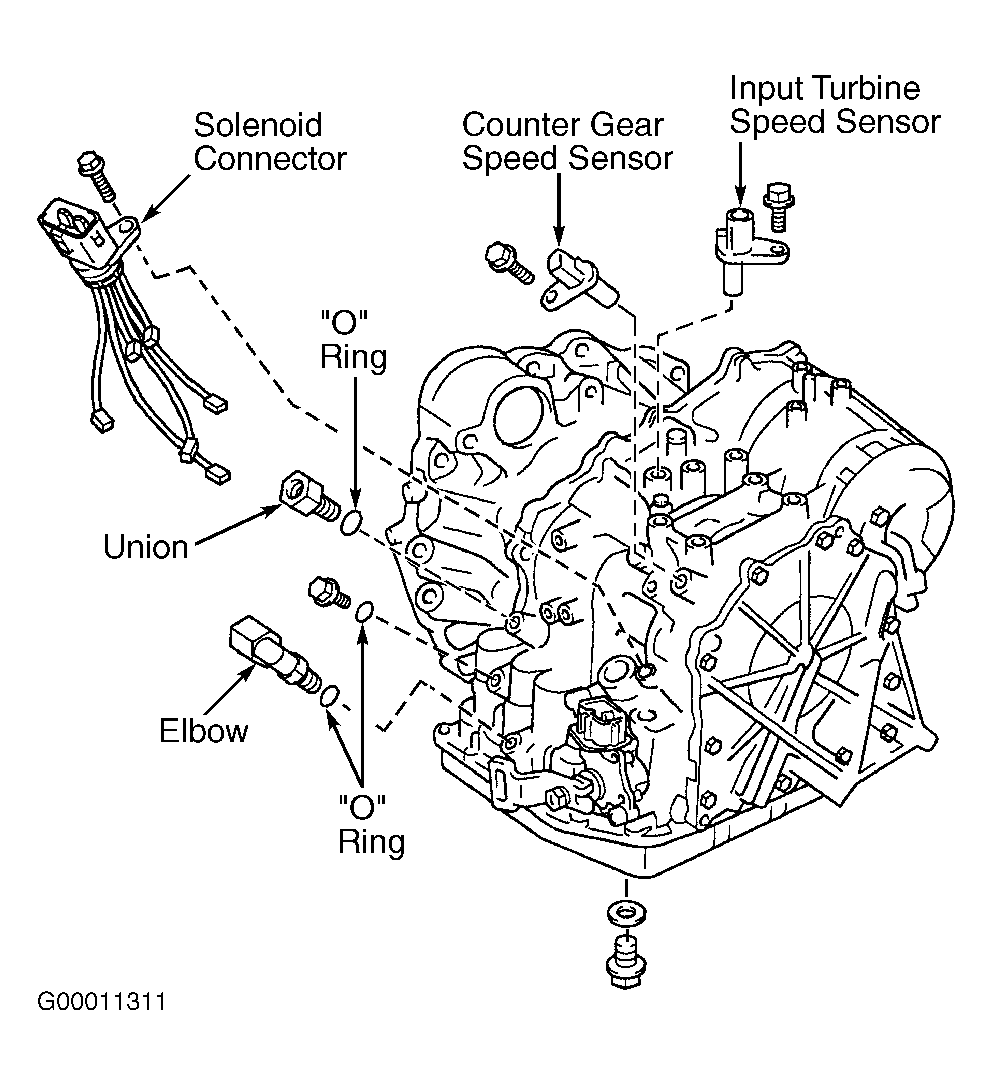

Fig 1: Identifying 10-Pin Solenoid Connector & Speed Sensor Locations
G00011311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

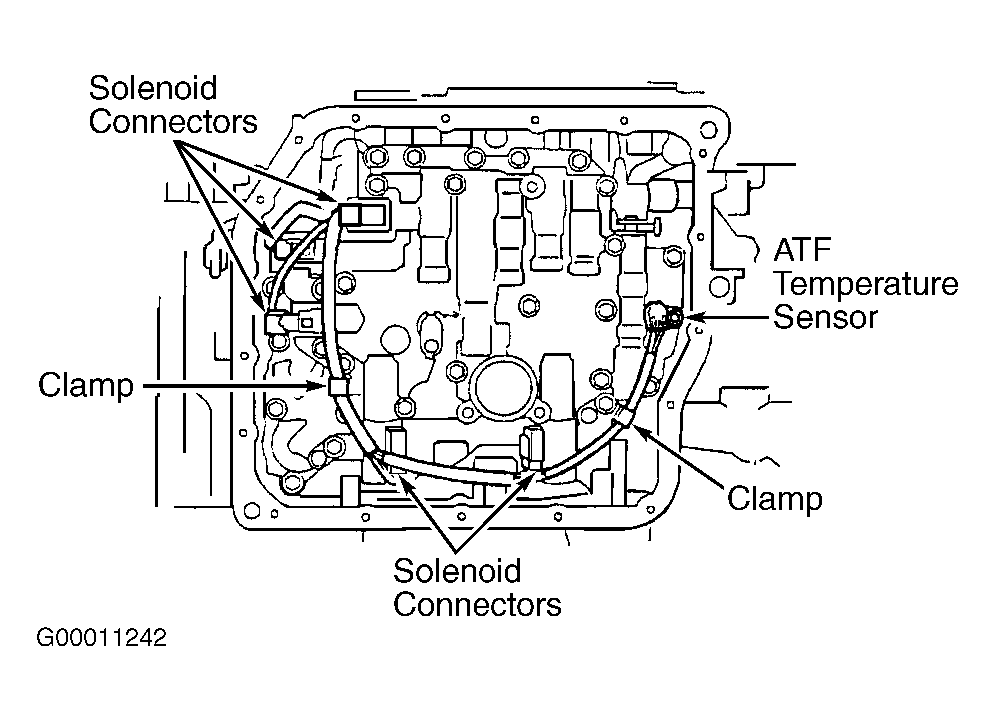

Fig 2: Locating Temperature Sensor & Solenoid Connectors
G00011242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
