Removal (Land Cruiser)
- Remove rear disc. Remove tension spring, shoe return springs and shoe strut with spring.

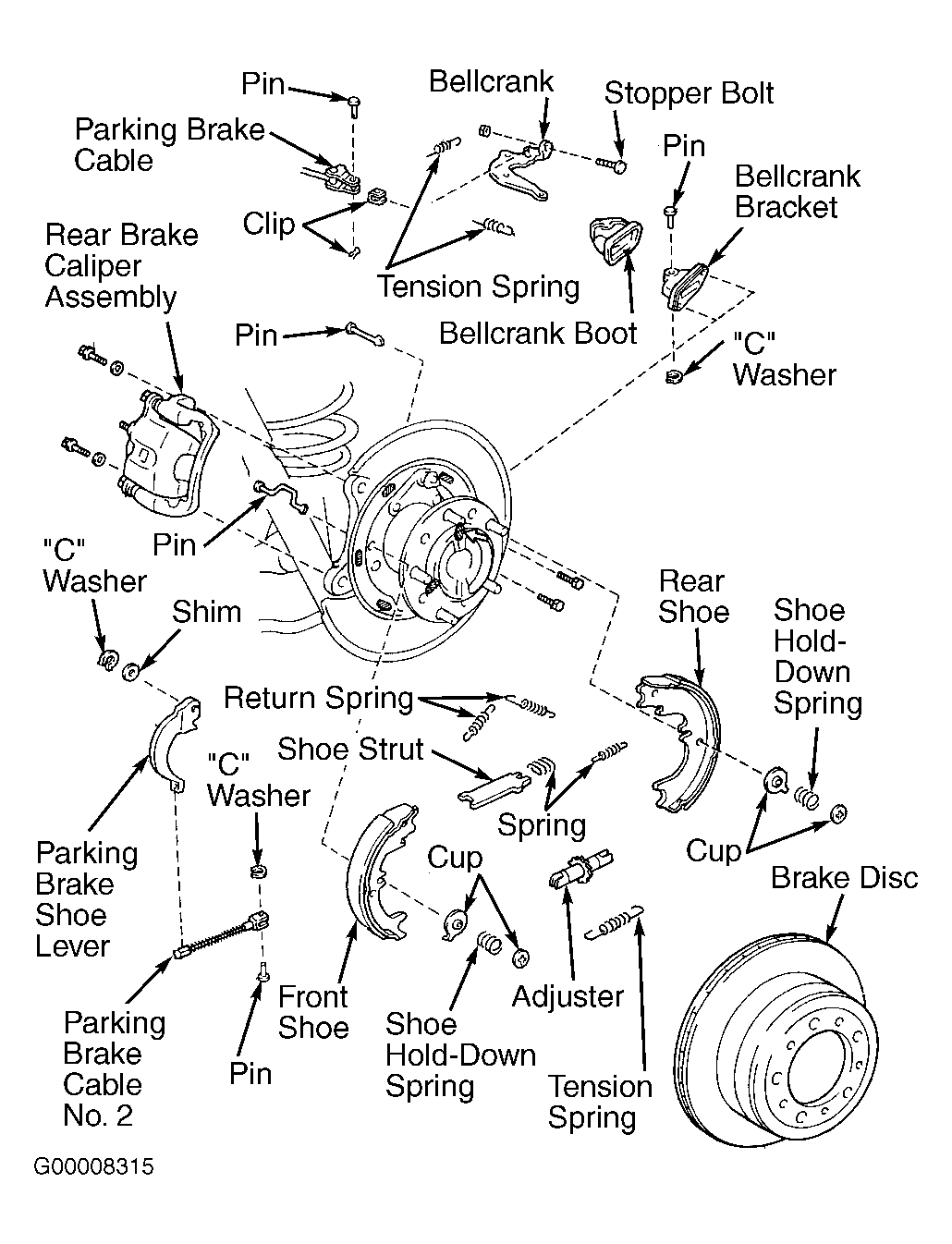

- Remove rear shoe and adjuster & tension spring. Remove hold-down spring, 2 clips, pin, front shoe and tension spring. Disconnect parking brake cable from lever. See Fig 1.
