Rear Wheel Cylinders
NOTE:

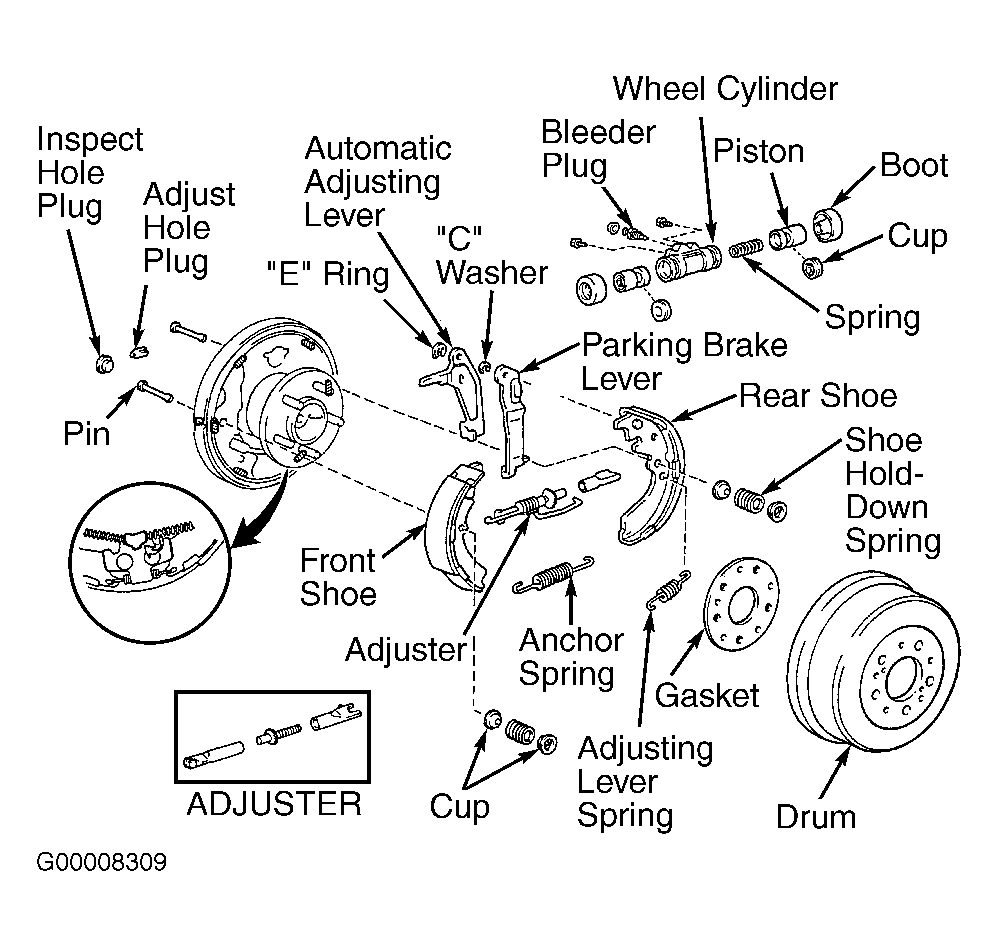

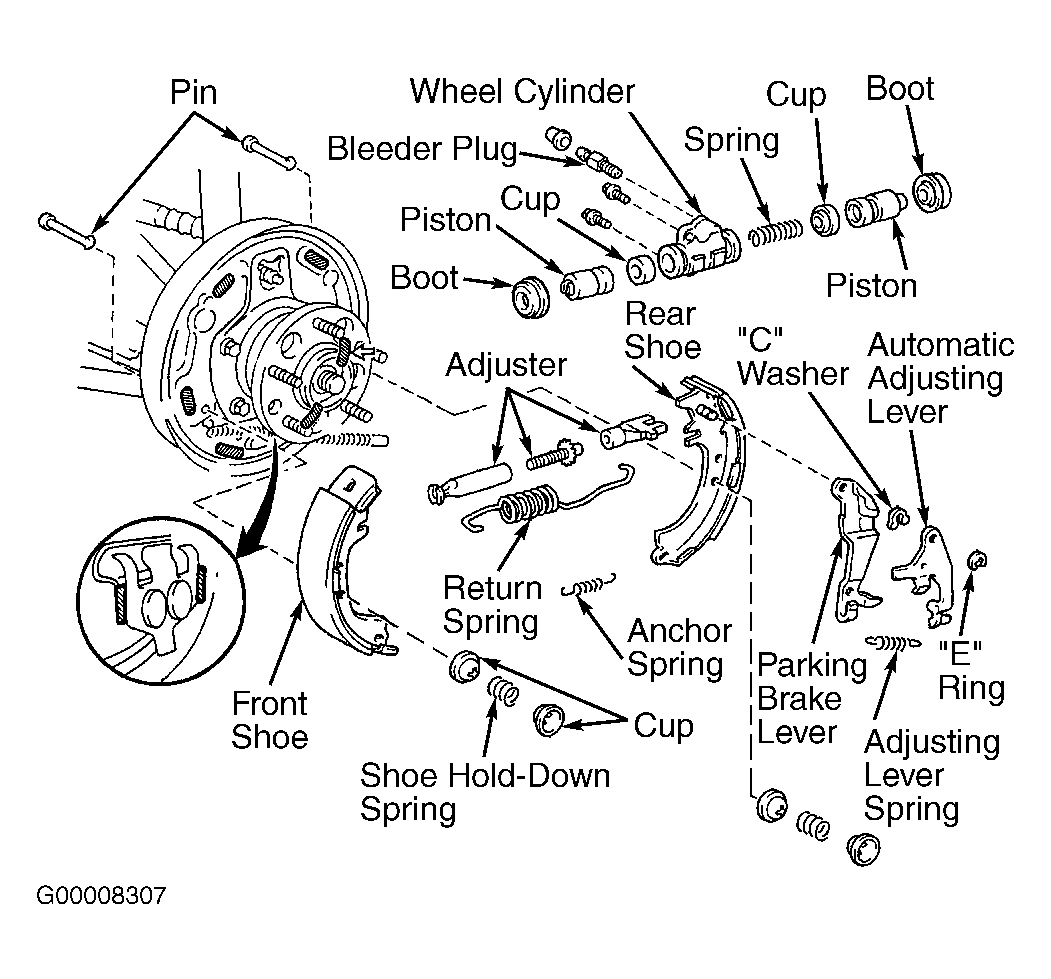

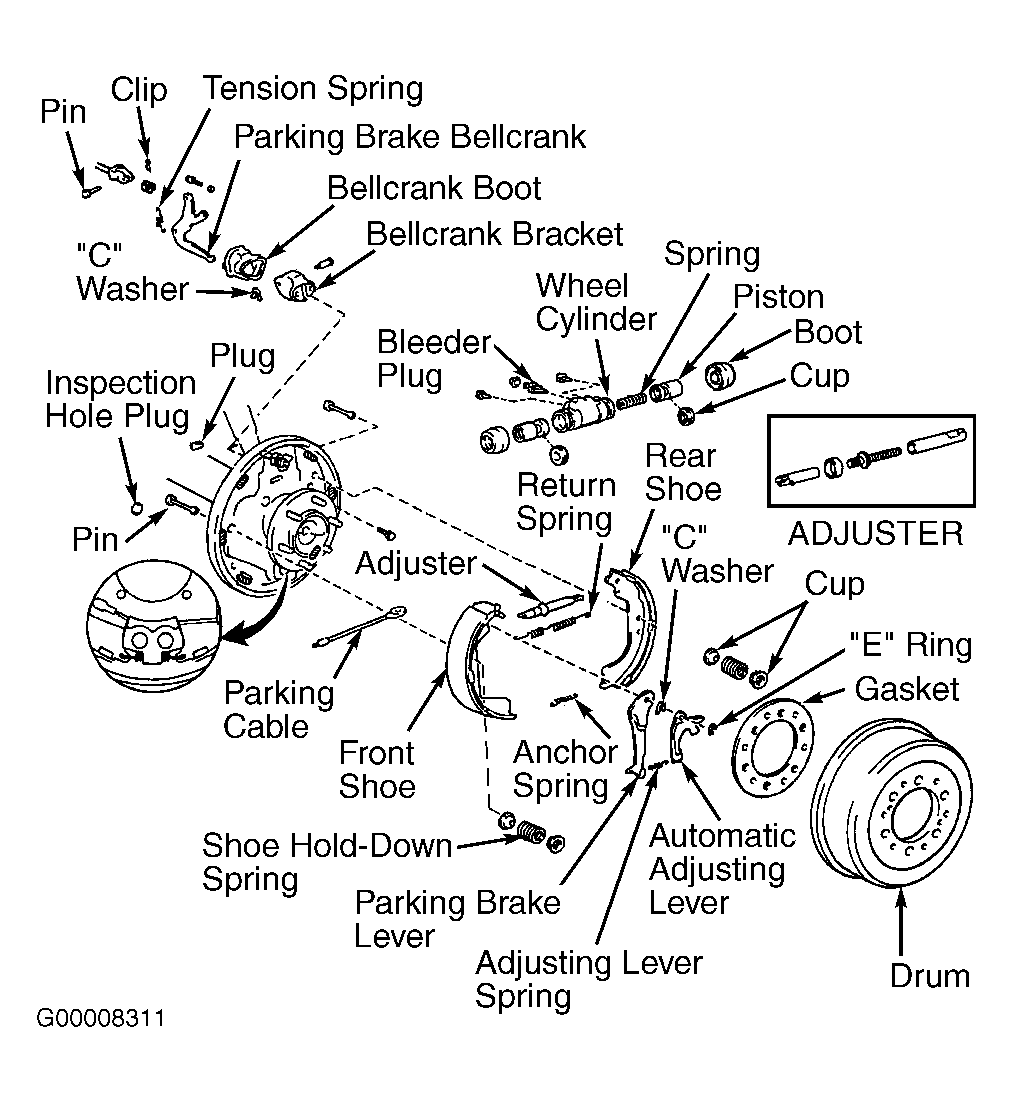

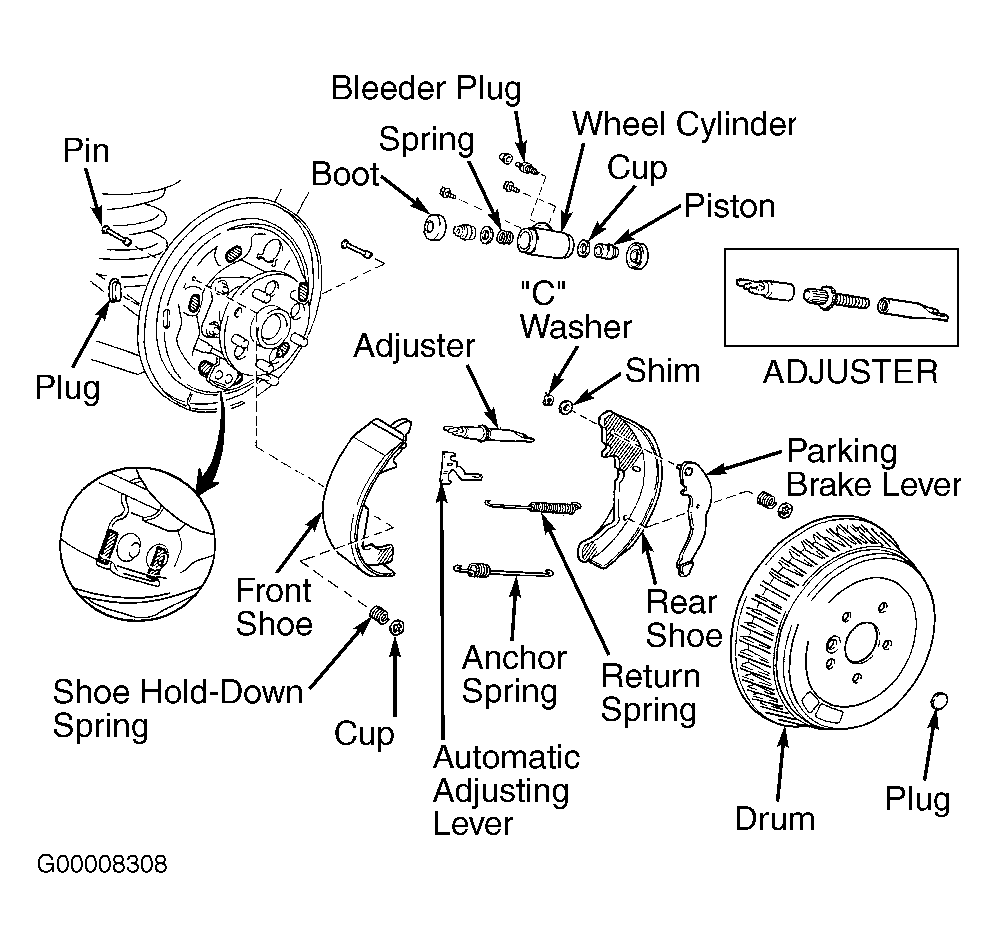

For overhaul of rear wheel cylinders, see
Figure
,
Figure
,
Figure
or
Figure
.
