Home >> Toyota >> 2000 >> RAV4 Base, AWD, Standard >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Disc Brakes & Drum Brakes >> Overhaul >> Front Brake Caliper

Front Brake Caliper

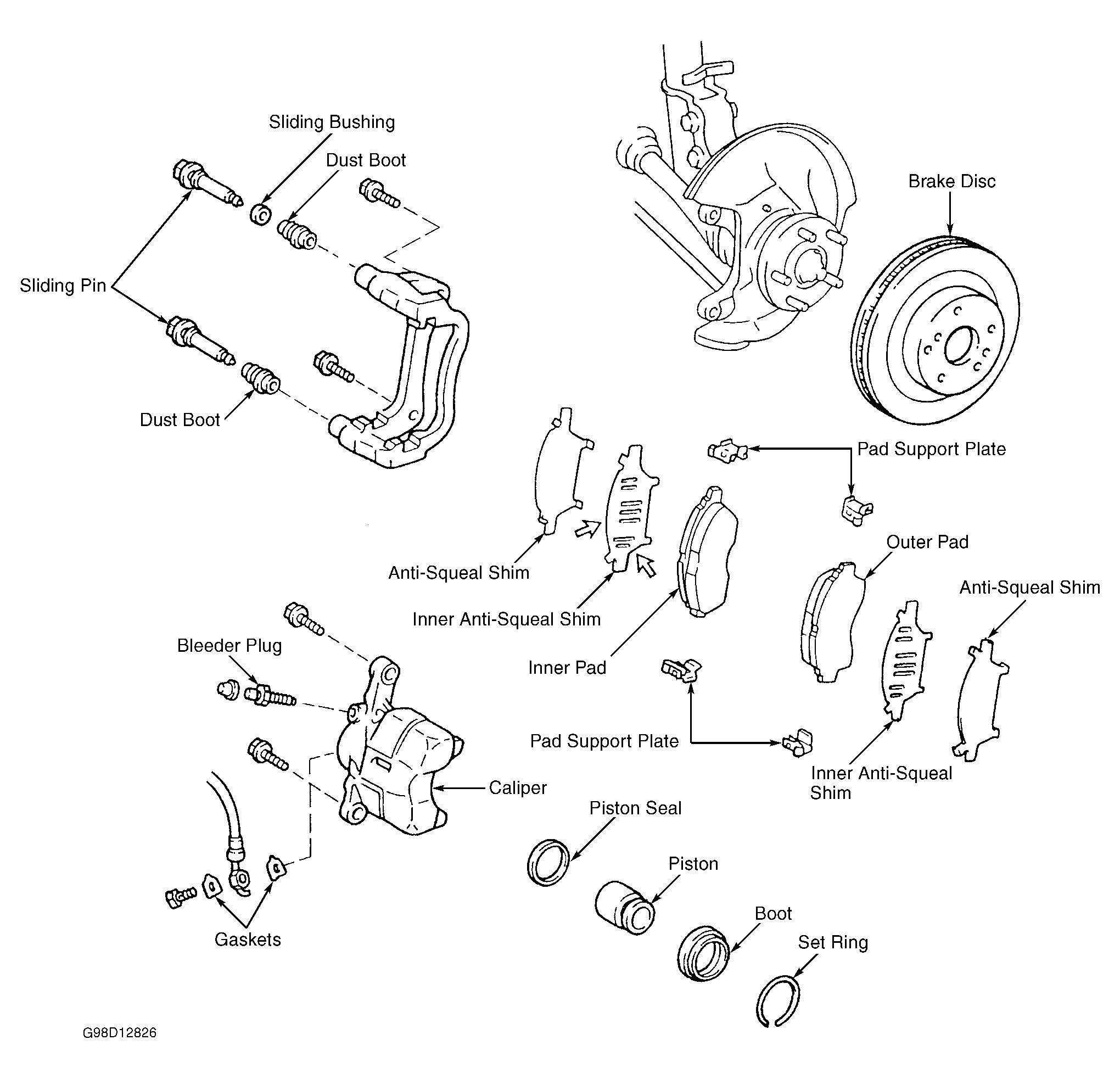

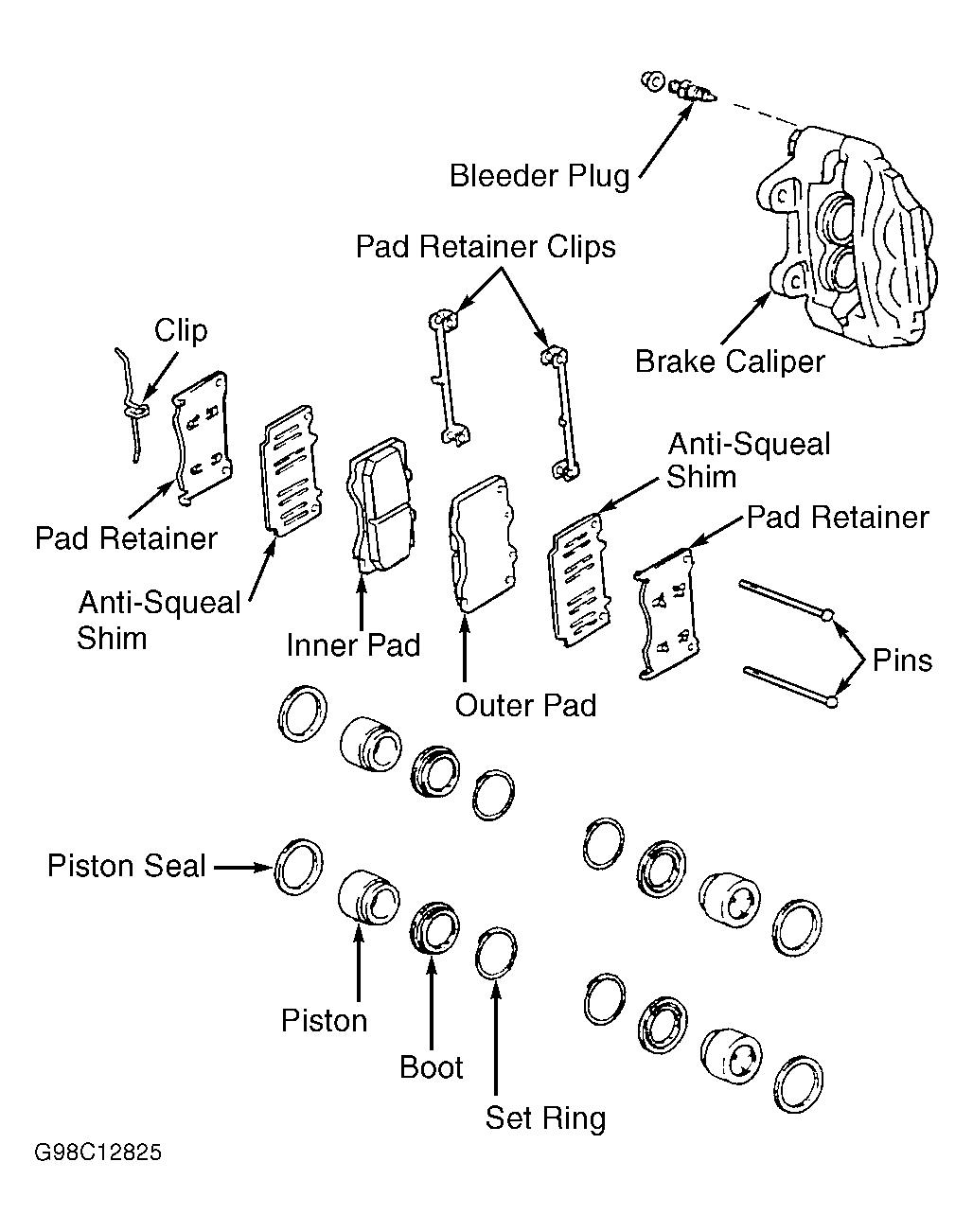

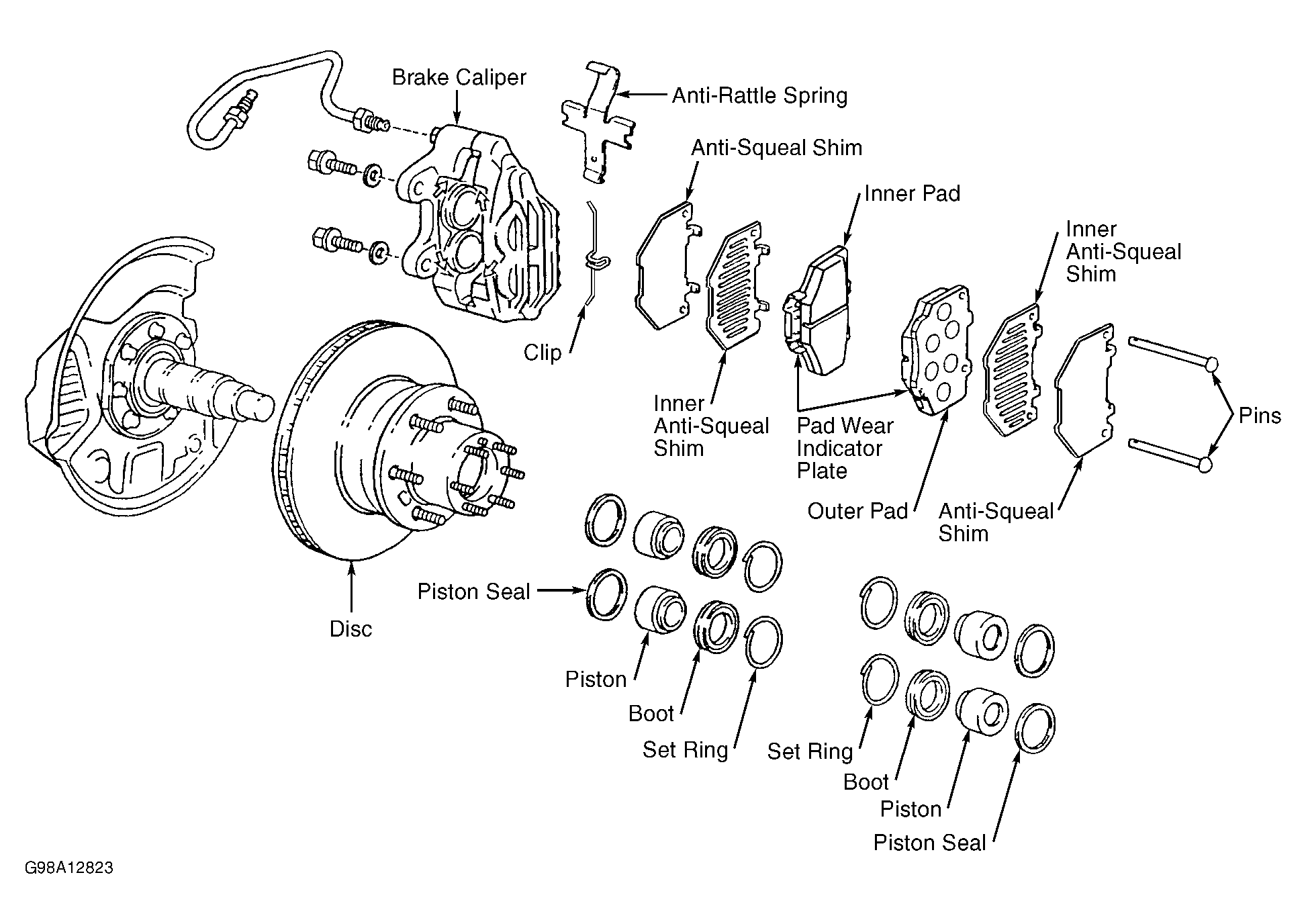

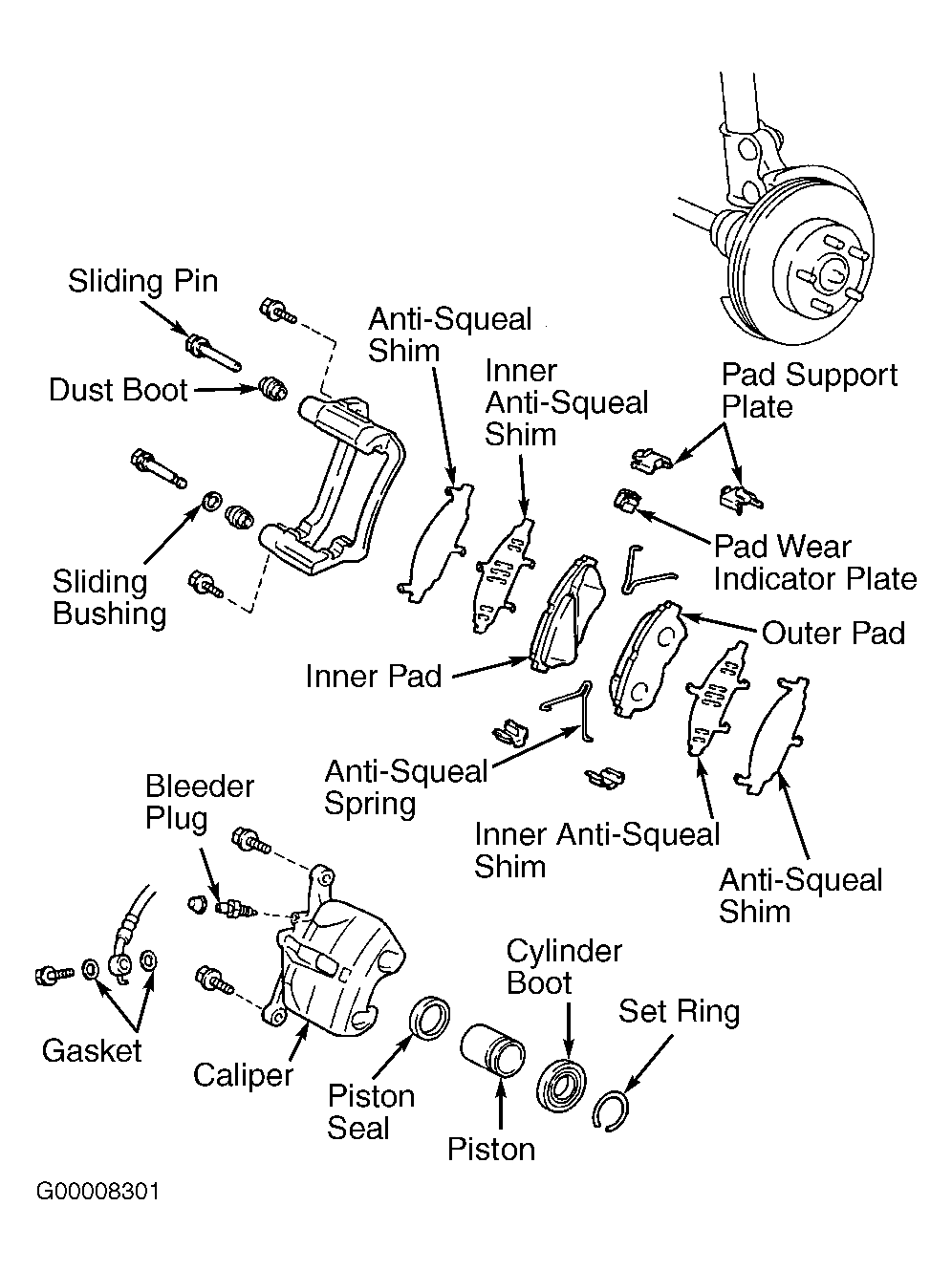

NOTE: For overhaul of front brake calipers, see Figure, Figure, Figure, or Figure .
