Oil Pressure Gauge Resistance Test (Land Cruiser & Tundra With Tachometer)

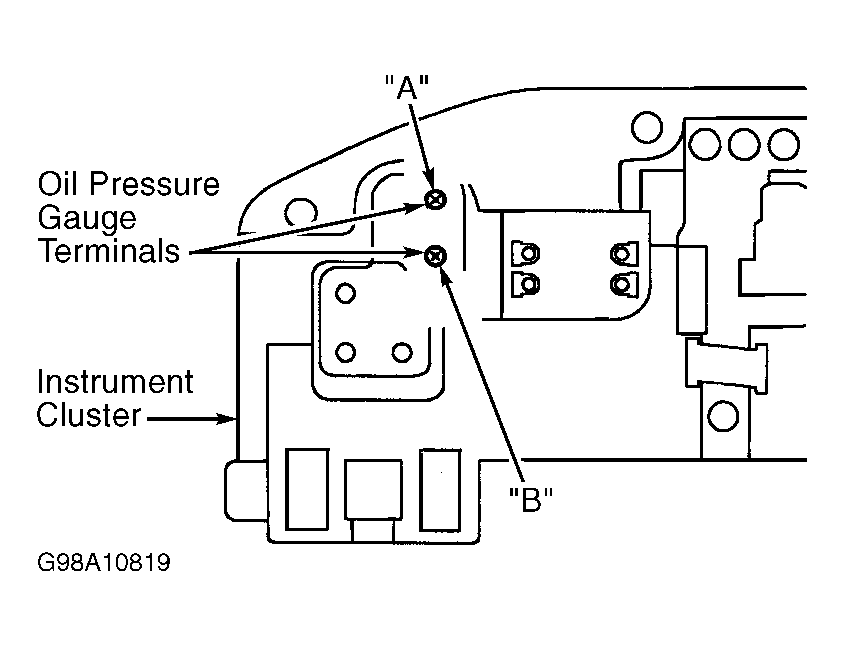

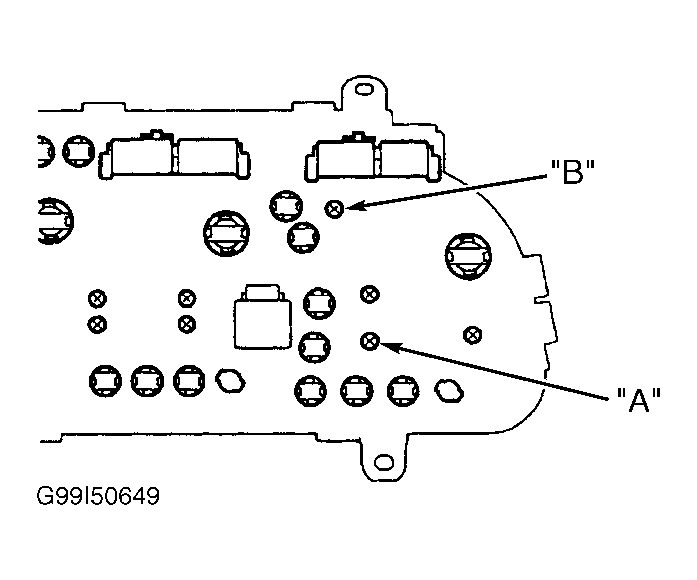

Remove instrument cluster. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION. Using an ohmmeter, check resistance between oil gauge terminals on rear of instrument cluster. See Fig 1 or Fig 2 . See OIL PRESSURE GAUGE RESISTANCE SPECIFICATIONS table. If resistance is not as specified, replace oil pressure gauge.
OIL PRESSURE GAUGE RESISTANCE SPECIFICATIONS
| Application (Terminals) | Ohms |
|---|---|
| Land Cruiser (A & B) | 44 |
| Tundra With Tachometer (A & B) | 25 |
