Disassembly & Reassembly (RWD Models)

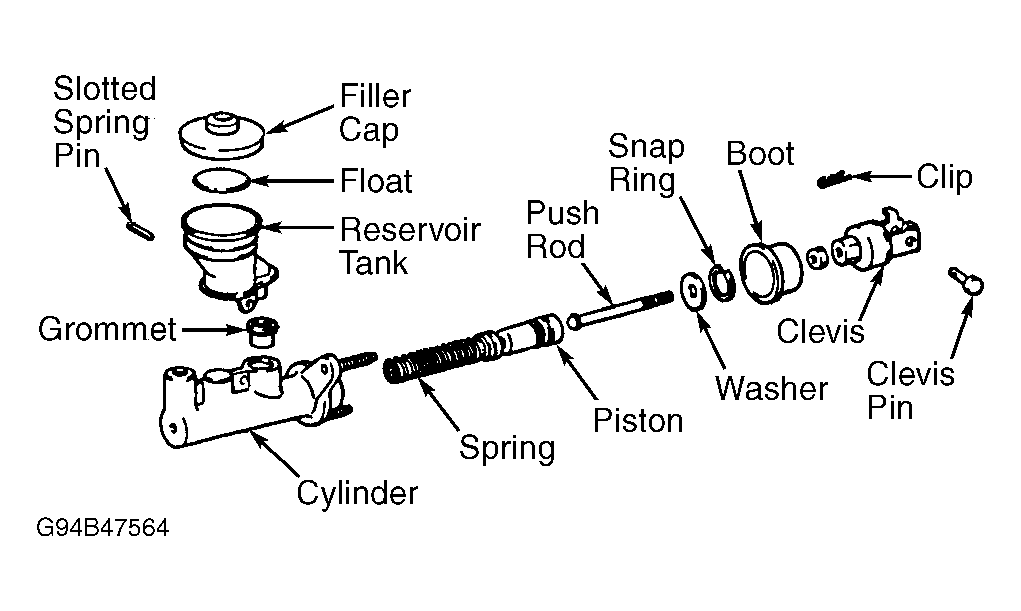

  1. Remove clutch master cylinder. See CLUTCH MASTER CYLINDER  under REMOVAL & INSTALLATION. Remove slotted spring pin. See Figure. Remove reservoir and grommet. Pull back boot. Remove piston snap ring and pull out push rod.
  2. To reassemble, reverse disassembly procedure. Coat parts with rubber lubricant. Install piston, push rod assembly and snap ring. Install reservoir tank and NEW grommet. Drive slotted spring pin in to reservoir tank until a protrusion of .059-0.138" (1.5-3.5 mm) exists. Bleed hydraulic system.
