Tacoma 2.4L 2RZ-FE Except Calif. Emission Vehicles, Tacoma 2.7L 3RZ-FE & 4Runner
- Disconnect electrical connector from EGR VSV. See EGR VSV LOCATIONS table. See Figure. Using ohmmeter, check that continuity exists between electrical terminals on EGR VSV and resistance is 33-39 ohms at 68°F (20°C). Replace EGR VSV if no continuity exists, or resistance is not within specification.
- Ensure no continuity exists between each electrical terminal and body of EGR VSV body. Replace EGR VSV if continuity exists between electrical terminal and body of EGR VSV.
- To test EGR VSV operation, apply air pressure to port "E". Ensure no air flows from port "F". Perform STEP 1 in illustration. See Fig 1. Apply battery voltage and ground to electrical terminals on EGR VSV.
- Apply air pressure to port "E". Ensure air flows from port "F". Perform STEP 2 in illustration. See Fig 1. Replace EGR VSV if defective.

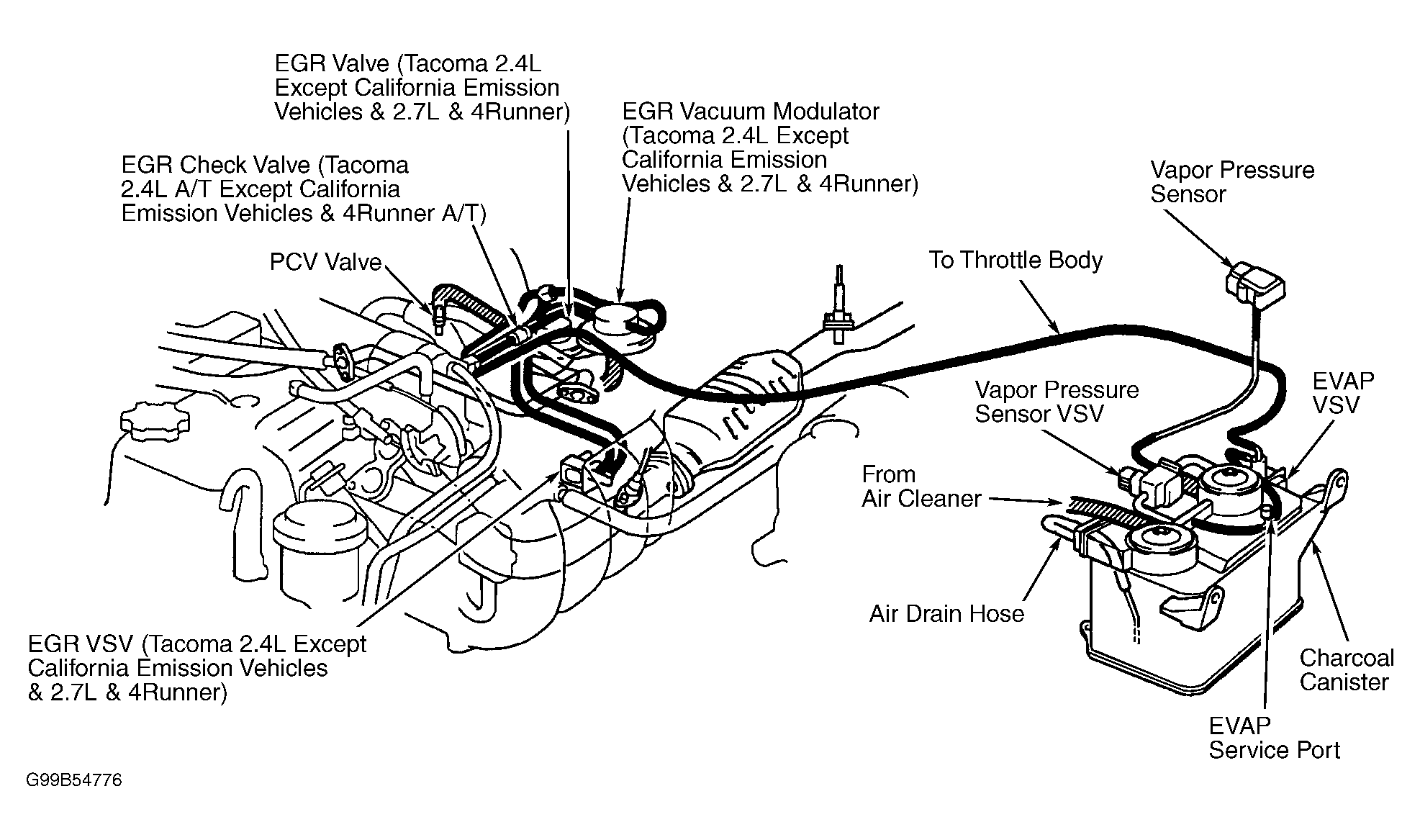

EGR VSV LOCATIONS
| Application | Location |
|---|---|
| Camry CNG & Gasoline Models, & Camry Solara | On Cylinder Head, Below Intake Manifold & Contains Blue, 2-Pin Electrical Connector With Pink/Black & Black/Yellow Wires |
| RAV4 | On Cylinder Head, Below Intake Manifold & Contains Blue, 2-Pin Electrical Connector With Black/White & Black/Red Wires |
| Tacoma | On Bracket, Near Throttle Body & Contains Green, 2-Pin Electrical Connector With White/Red & Pink/Black Wires |
| 4Runner | On Bracket, Near Throttle Body & Contains Green, 2-Pin Electrical Connector With White/Blue & Pink/Blue Wires |
