Removal (Tacoma Except Calif. Emission Vehicles & 4Runner Except Calif. Emission Vehicles)

  1. Ignition coils are mounted on passenger's side front corner of engine. Remove air cleaner hose for access to ignition coils.

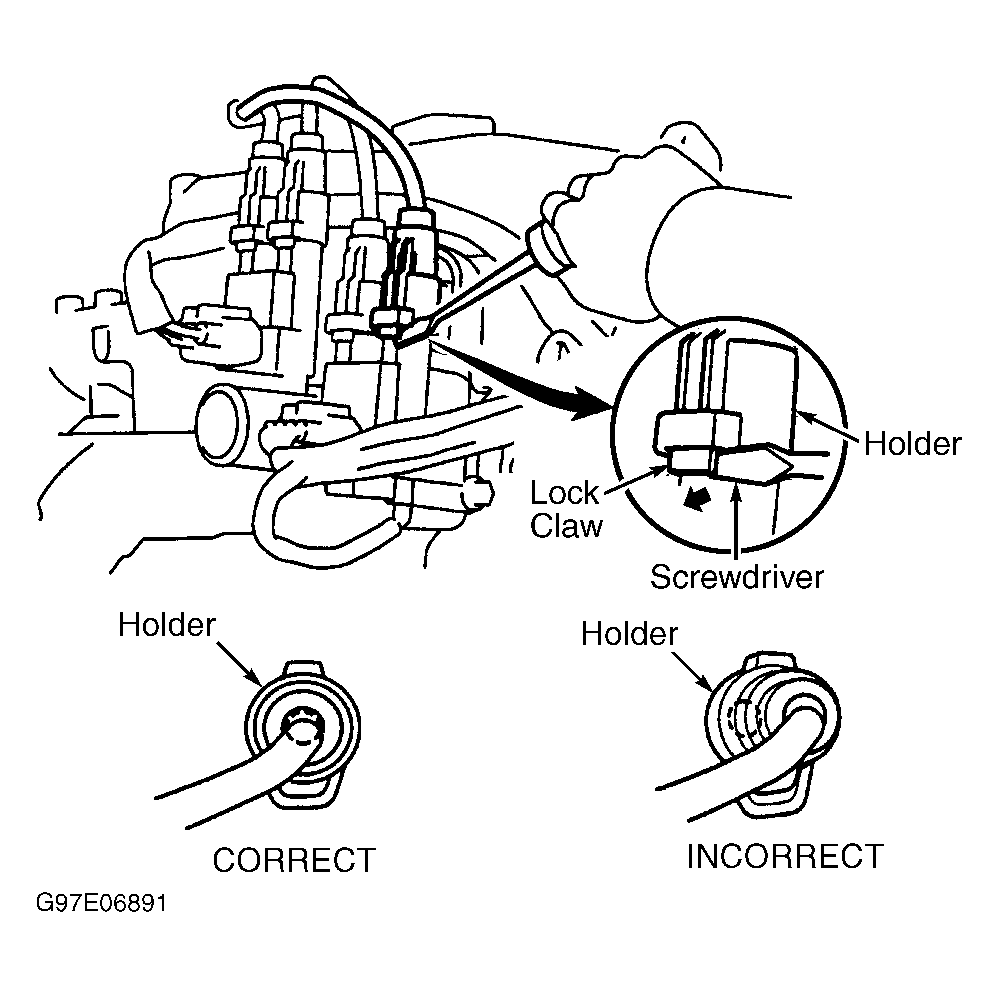

  2. Disconnect electrical connector at ignition coil. To disconnect spark plug wire at ignition coil, use small screwdriver to lift lock claw upward. See Figure.
  3. Disconnect holder from ignition coil. Pull upward on grommet on end of spark plug wire to disconnect spark plug wire from ignition coil. DO NOT pull on spark plug wire. Note location of ignition coil installation for installation reference. Remove ignition coil retaining bolts and ignition coil.
