Removal & Installation (Tacoma 2.4L 2RZ-FE With A/T Except Calif. Emission Vehicles & 4Runner With A/T)

  1. Remove EGR check valve from vacuum hose. EGR check valve is located in vacuum hose between intake manifold and top of EGR vacuum modulator. See Fig 1. EGR check valve contains an Orange-colored side and a Black-colored side.
  2. To install, reverse removal procedure. Ensure EGR check valve is installed with Orange-colored side of EGR check valve toward EGR vacuum modulator.

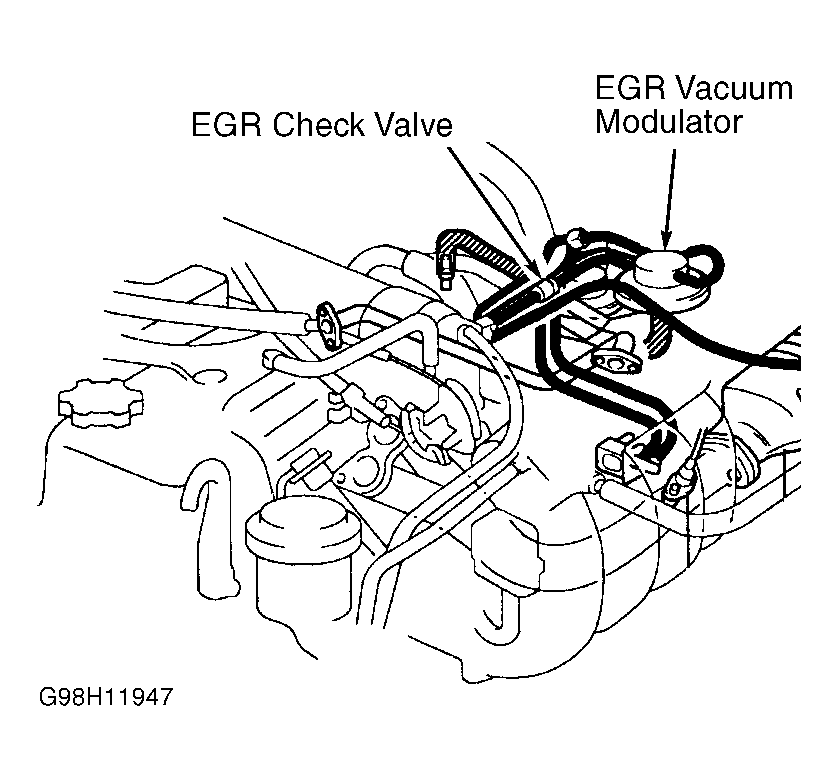

    Fig 1: Locating EGR Check Valve (Tacoma 2.4L 2RZ-FE With A/T Except Calif. Emission Vehicles & 4Runner With A/T)
    G98H11947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
