Land Cruiser
NOTE:

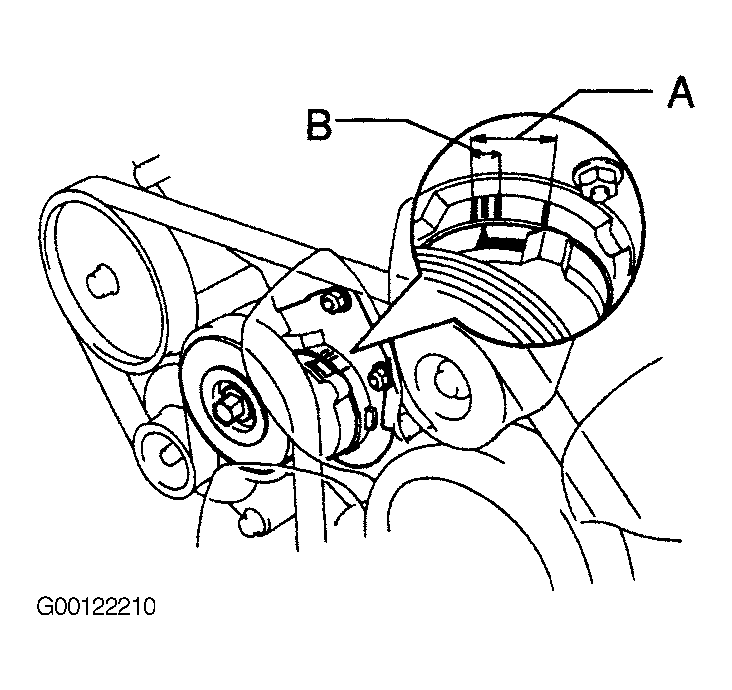

This vehicle is equipped with an auto tensioner. No adjustment is needed. Check that the tension is within "A" range on the auto tensioner scale. If the tension is not within the "A" range on the scale, replace the belt with a new one. See Fig 1. When replacing the drive belt with a new one, the belt's tension should be within the "B" range on the belt tensioner scale.
