Removal & Installation (Sienna)
- Disable air bag system, driver's air bag and steering wheel. See AIR BAG RESTRAINT SYSTEMS article.

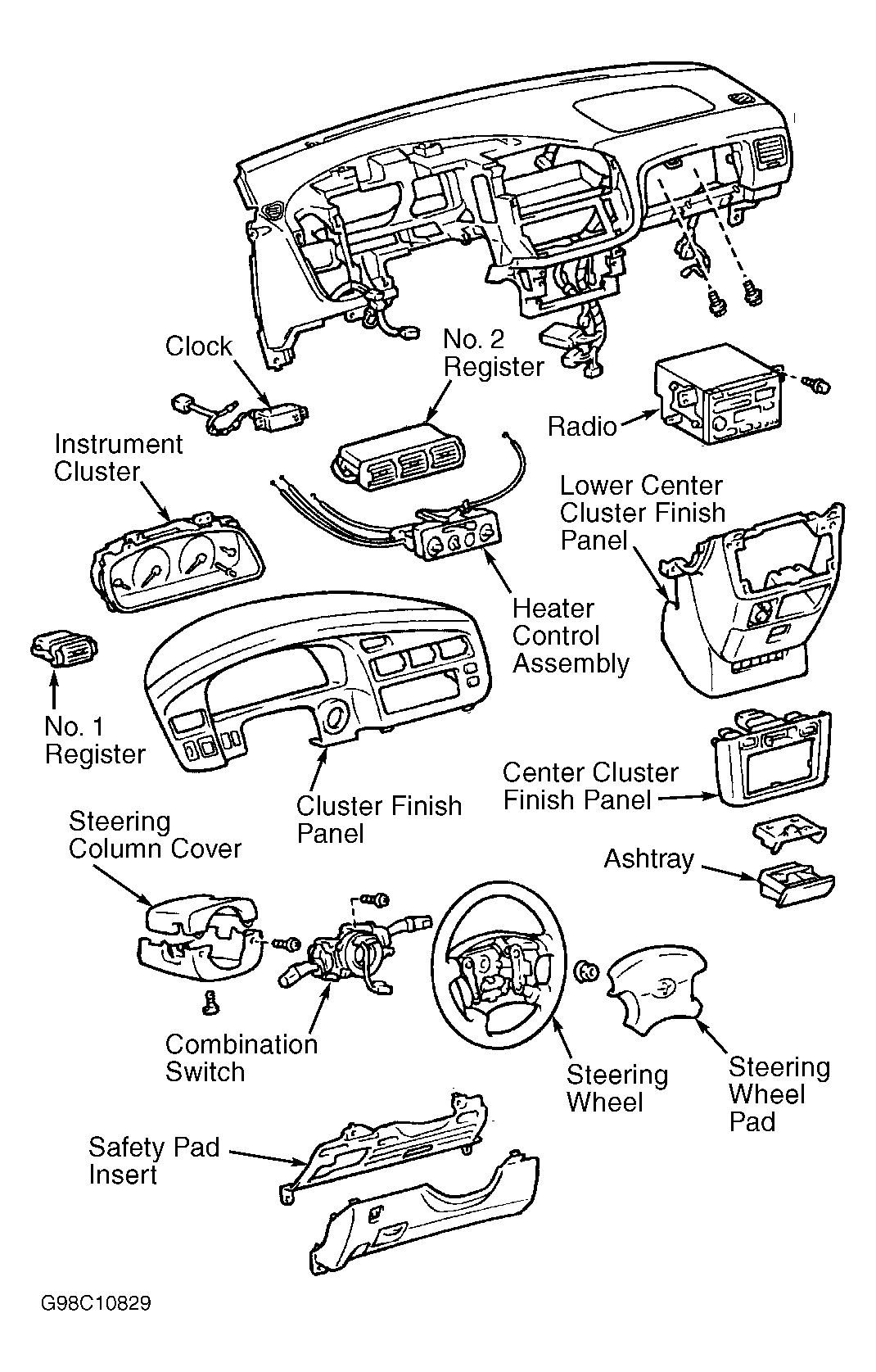

Remove steering column covers. Remove hood release lever. Remove lower finish panel and safety pad insert. See Fig 1.
- Using flat-blade screwdriver, pry center cluster finish panel loose from 4 retaining clips and remove panel. Remove ashtray. Remove lower center cluster finish panel. Remove instrument cluster finish panel. Remove clock, No. 1 register and No. 2 register from instrument cluster finish panel. Remove retaining screws from instrument cluster.
- Pull cluster outward enough to disconnect wiring harness connectors. Remove instrument cluster. To install, reverse removal procedure.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
