Speedometer Resistance (Land Cruiser & Tundra)

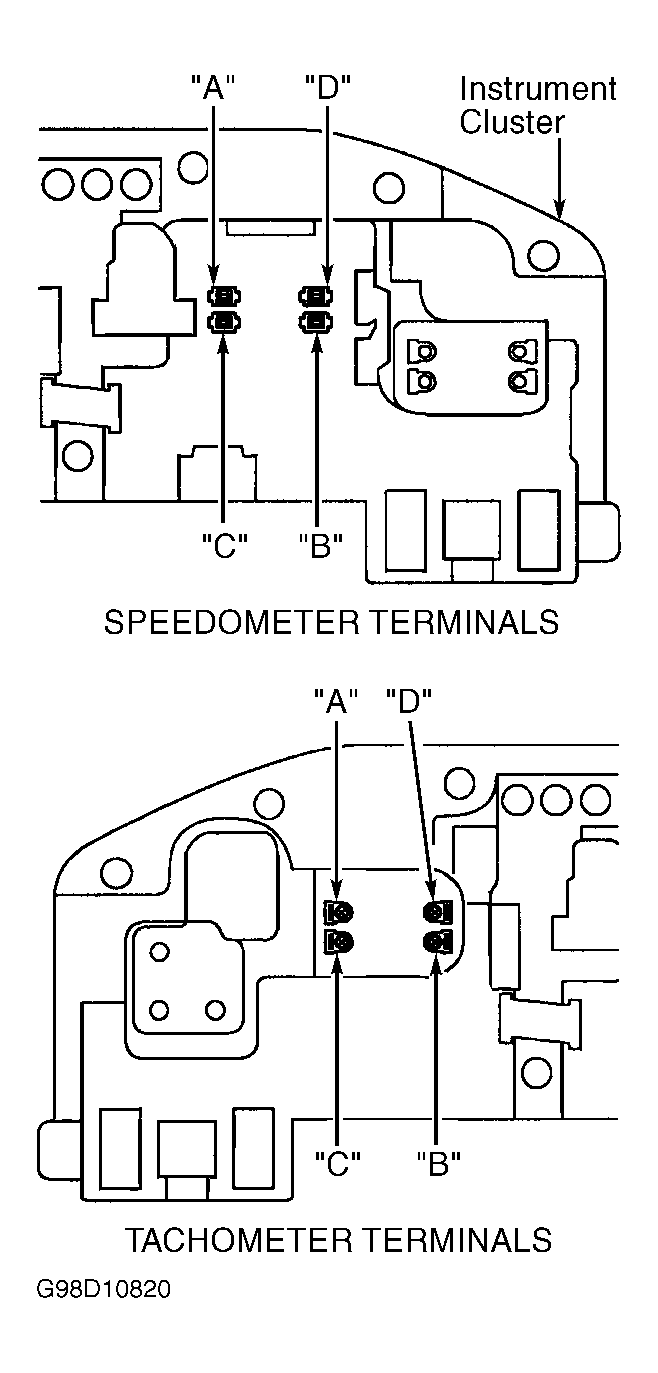

Remove instrument cluster. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION. Using an ohmmeter, check resistance between speedometer terminals on rear of instrument cluster. See Figure and Fig 1 . See SPEEDOMETER RESISTANCE table. If resistance is not as specified, replace speedometer.
SPEEDOMETER RESISTANCE
| Application & Terminals | Ohms | |
|---|---|---|
| Land Cruiser & Tundra | ||
| A & B | 160 | |
| C & D | 160 | |
