Removal (Rear)

  1. Place matchmarks on the drive shaft and transfer flanges. See Fig 1.
  2. Remove the 4 nuts and washers.
  3. Place matchmarks on the drive shaft and rear differential flanges. See Fig 2.
  4. Remove the 4 nuts, bolts and washers.
  5. Remove rear drive shaft.
  6. To install, reverse removal procedures. See TORQUE SPECIFICATIONS .

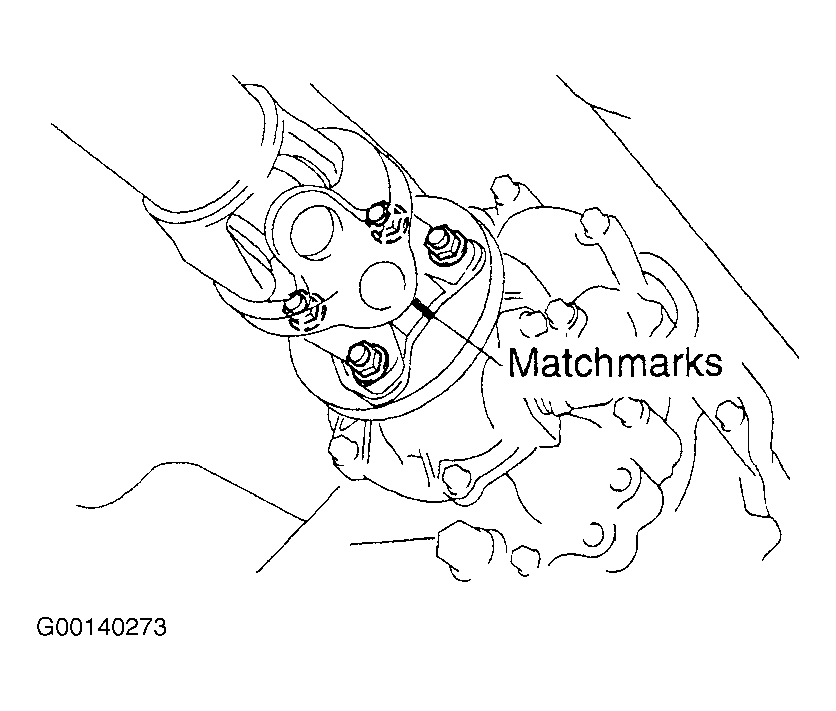

Fig 1: Placing Matchmarks On Rear Drive Shaft & Transfer Flanges
G00140273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

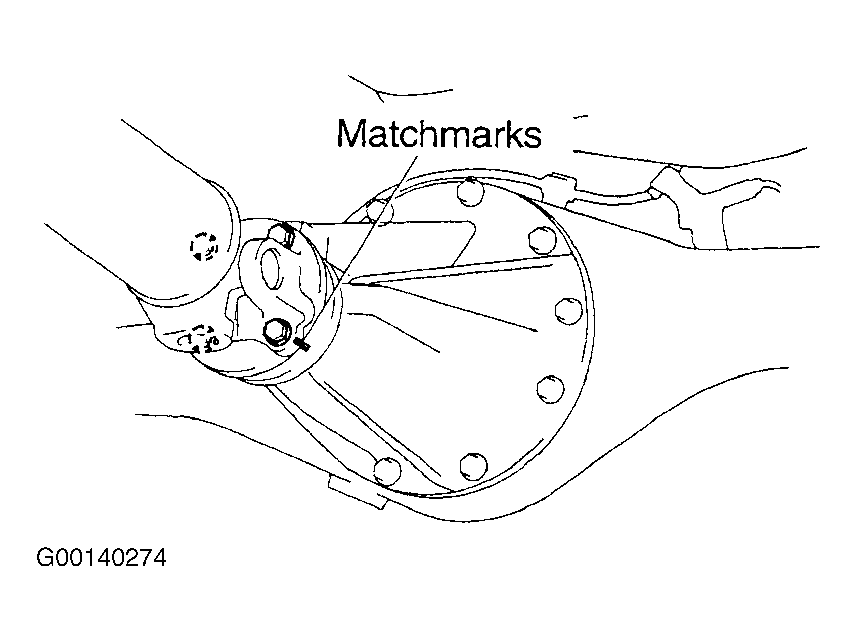

Fig 2: Placing Matchmarks On Rear Drive Shaft & Differential Flanges
G00140274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
