Removal (Front)

  1. Place matchmarks on the drive shaft and differential flanges. See Fig 1.
  2. Remove the 4 nuts, bolts and washers.
  3. Suspend the front side of the drive shaft.
  4. Place matchmarks on the drive shaft and transfer flanges.
  5. Remove the 4 nuts and washers.
  6. Remove the front drive shaft.

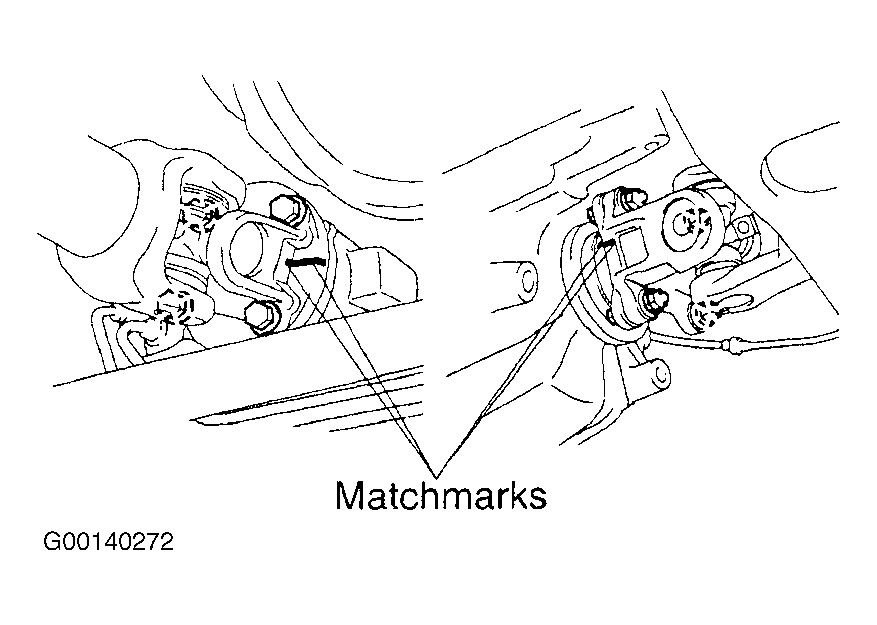

Fig 1: Placing Matchmarks On Front Drive Shaft, Differential & Transfer Flanges
G00140272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
