Drive Shafts & Universal Joints - 4WD
>>
Component Location
Component Location
For component locations, see
Fig 1
.

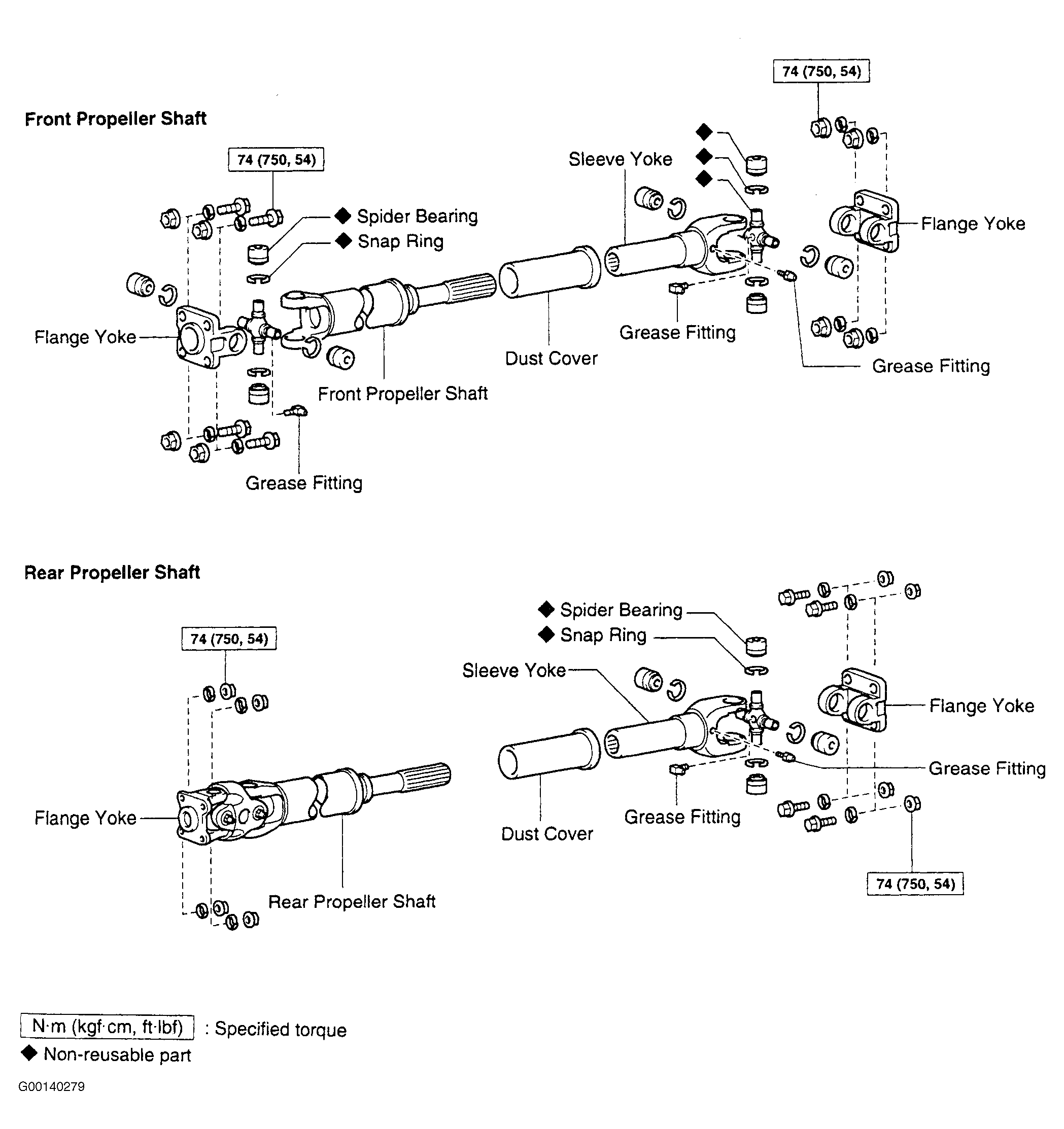

Fig 1: Exploded View Of Drive Shaft
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
