Removal (Camry - Japan Built)

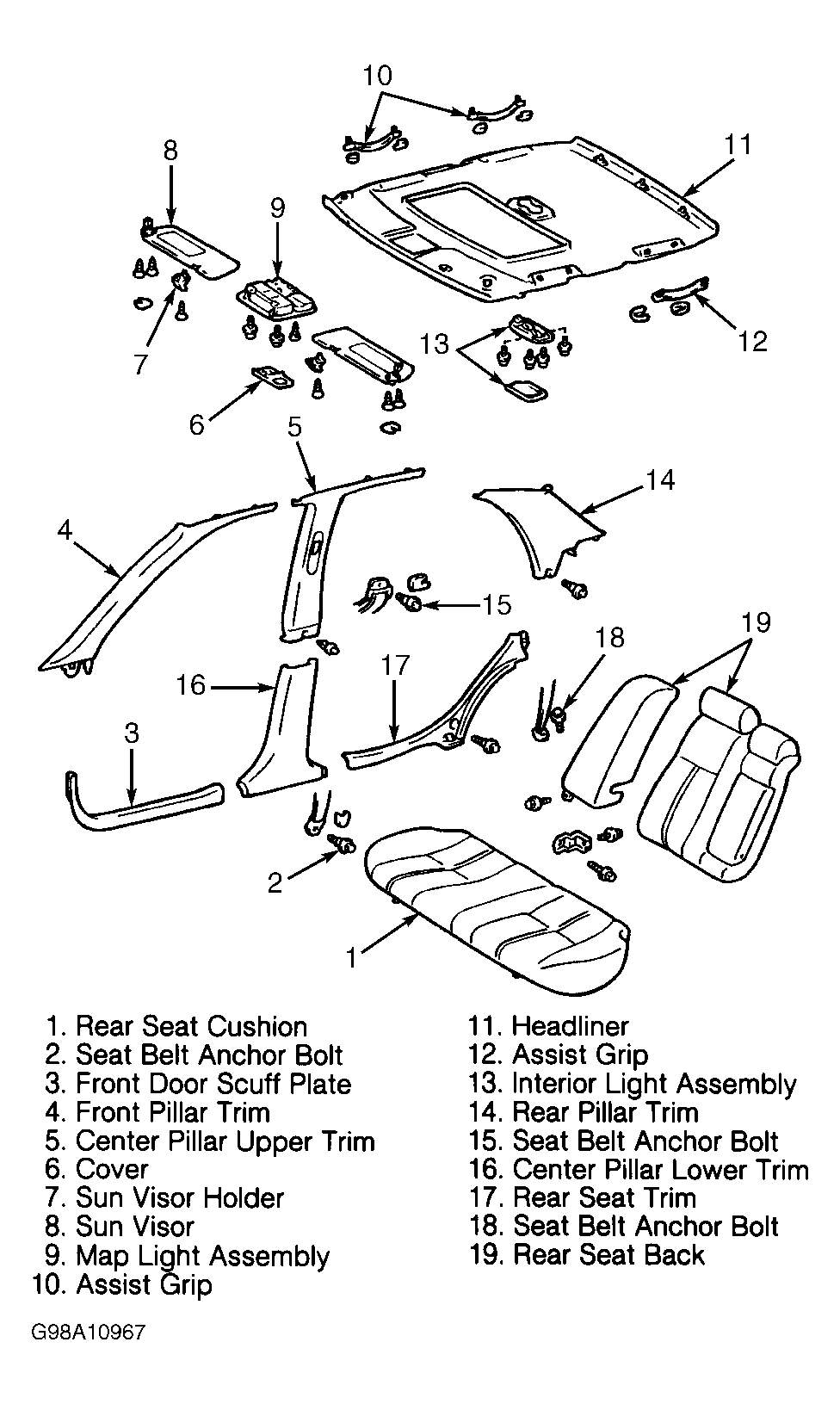

  1. Close sun roof. Turn ignition off. Remove rear seat cushion and seat backs. Remove front door scuff plates. See Figure. Remove front seat belt shoulder anchor bolts. Remove sun visor and holders. Remove assist grips. Remove clips, pull up and remove front pillar trim. Remove rear door scuff plates. Remove center pillar lower and upper trim. Remove rear pillar trim.
  2. Remove dome light cover and dome light. Remove map light assembly. Release 2 clips at rear of roof headlining and remove roof headlining. Remove sun roof side trim. Using a Torx wrench, remove 4 sun roof glass mounting screws. See Figure.
  3. Pull upward on sun roof glass and remove. Remove 3 bolt and sun roof motor assembly. Disconnect 4 drain hoses. Remove 8 bolts and 4 brackets. Remove 6 nuts and sun roof housing.
