Reassembly (Camry - USA Built)

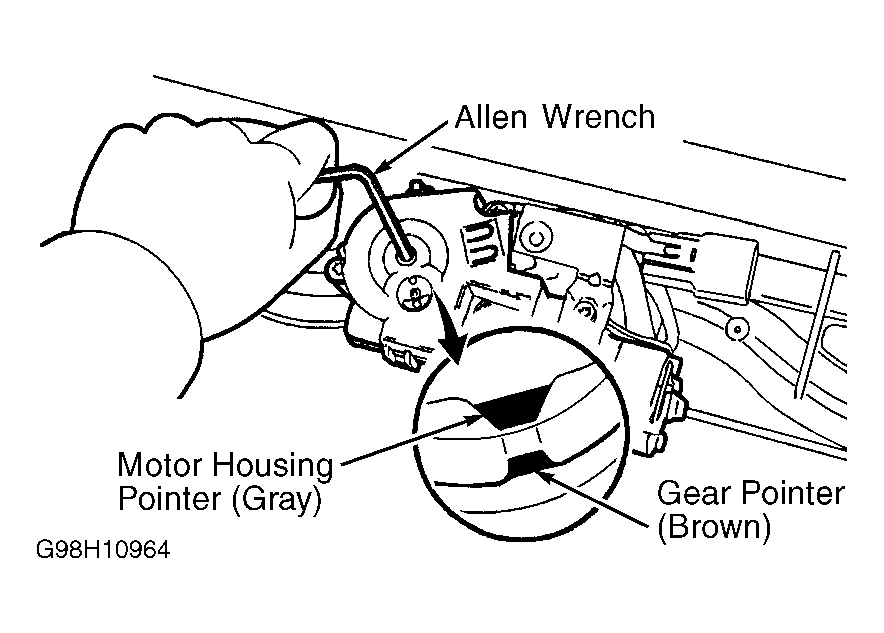

- To reassemble, apply seal packing to drain cap. Align rear roof drip channel with roof drip channel guide hook. Prior to installing drive motor, use an Allen wrench and align motor housing pointer to gear pointer. See Figure.
- Install NEW left and right sun roof lift arm and cable assembly rivets. Ensure not to sandwich sun roof wind deflector between upper and lower sections of front rail assembly. Install NEW sealing type rivets when installing sun roof wind deflector.
