Installation (Sienna All)

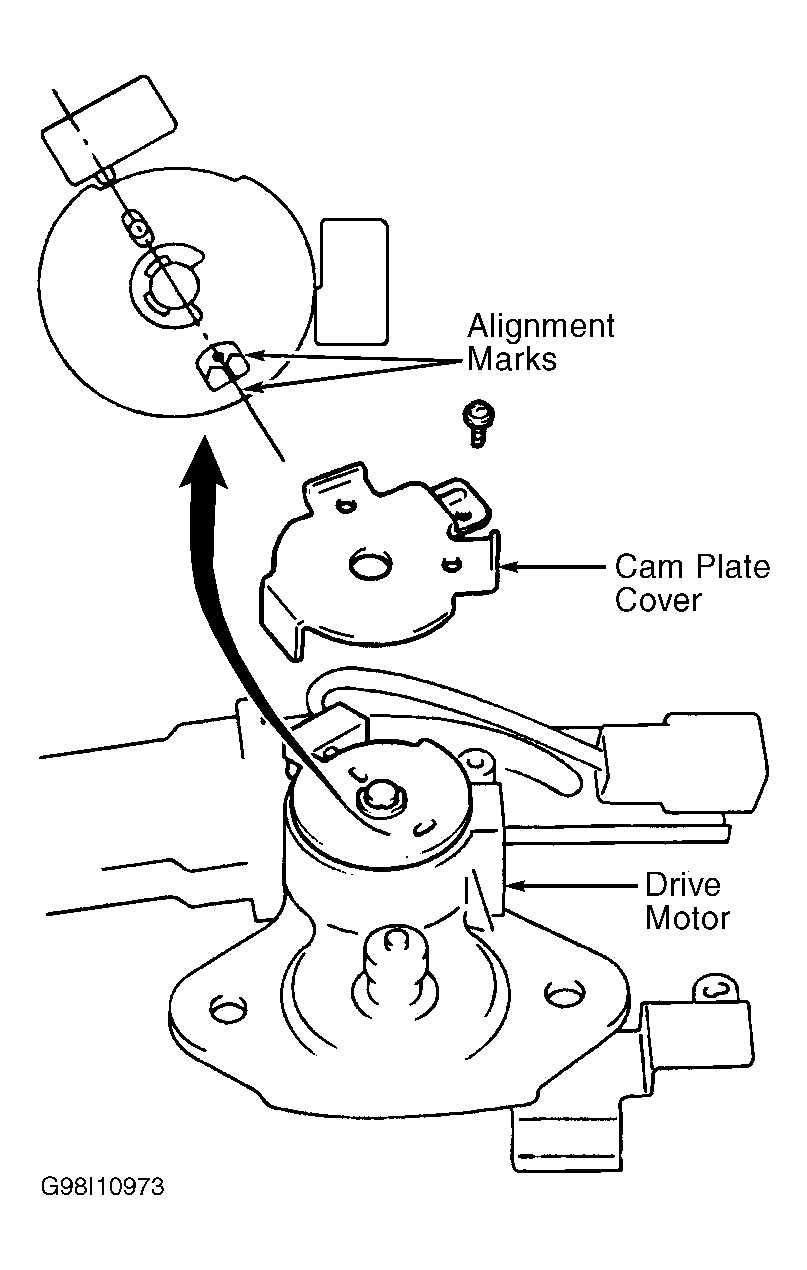

Prior to installing drive motor, remove cam plate cover from drive motor. Turn drive gear until marks align, indicating a full closed position. See Figure. Reinstall cam plate cover. Tighten nuts and bolt to specification. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.
