Installation (Camry - USA Built)

Soak sun roof side trim in water to soften it before installing. Adjust height of glass panel using 4 adjusting screws.
If sun roof housing was disassembled, adjust drive cable to a completely closed and tilted down position. Using a screwdriver, slide left and right cable assemblies forward or backward to align holes in cable arm and lift arm. Insert a .12" (3 mm) pin to ensure holes are aligned. Ensure hook is positioned as shown. See Fig 4.
Remove alignment pin. Cycle assembly once (vent position closed, slide open and slide completely closed). After cycling assembly closed, ensure alignment holes align. See Fig 5. If holes are not aligned, repeat procedure.
A slight interference between guide pin and curved lead-in on side rail should exist. Cycle sun roof and ensure hook engages wind deflector spring smoothly. If clicking sound is heard, adjustment is incorrect. To readjust guide pin, loosen screw and adjust pin so there is a slight interference. Tighten nuts and bolt to specification. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.

Fig 1: Removing Headlining (Camry)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

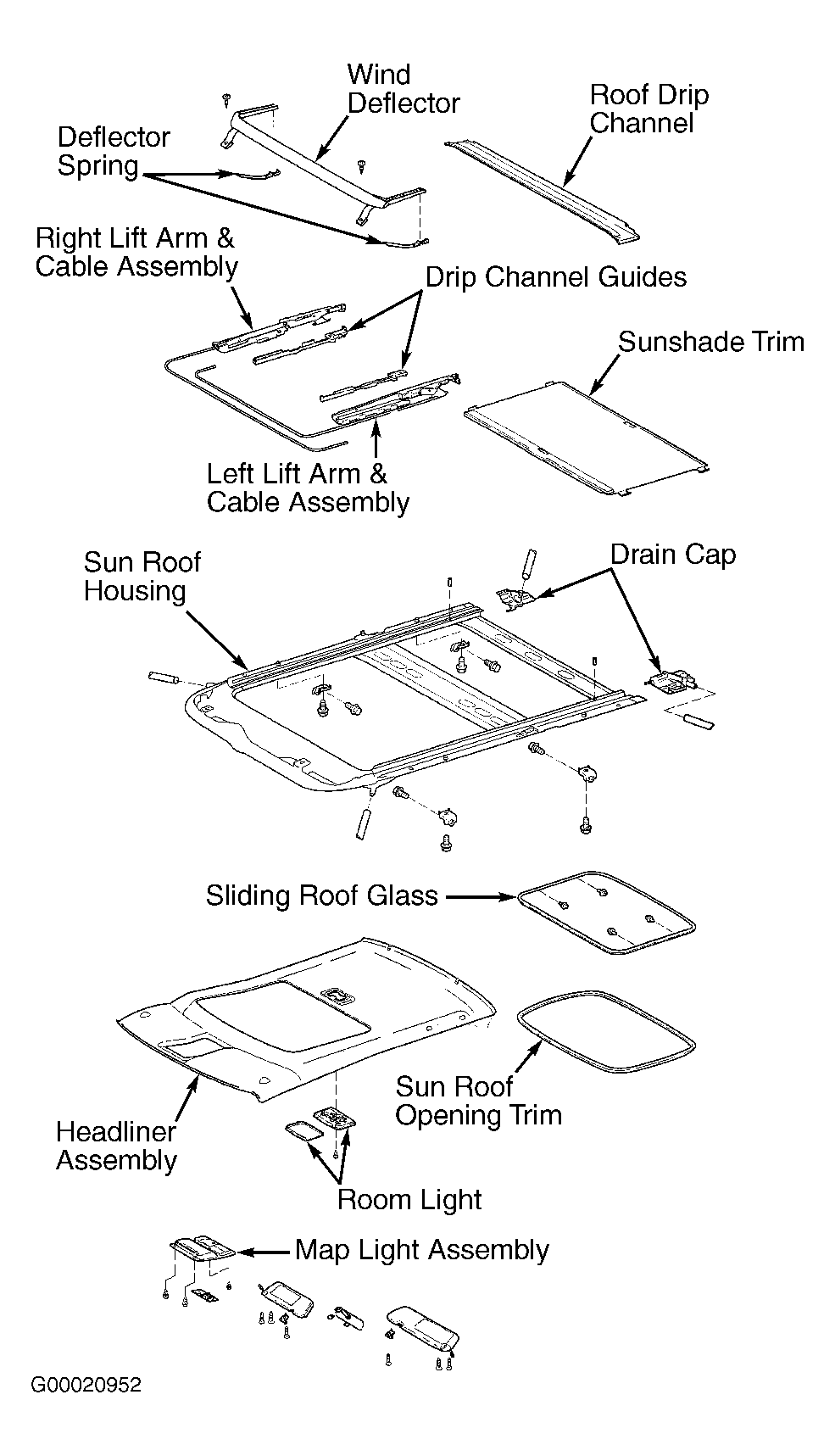

Fig 2: Exploded View Of Sun Roof Assembly (Camry - USA Built)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Aligning Sun Roof Drive Gear (Camry - USA Built)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

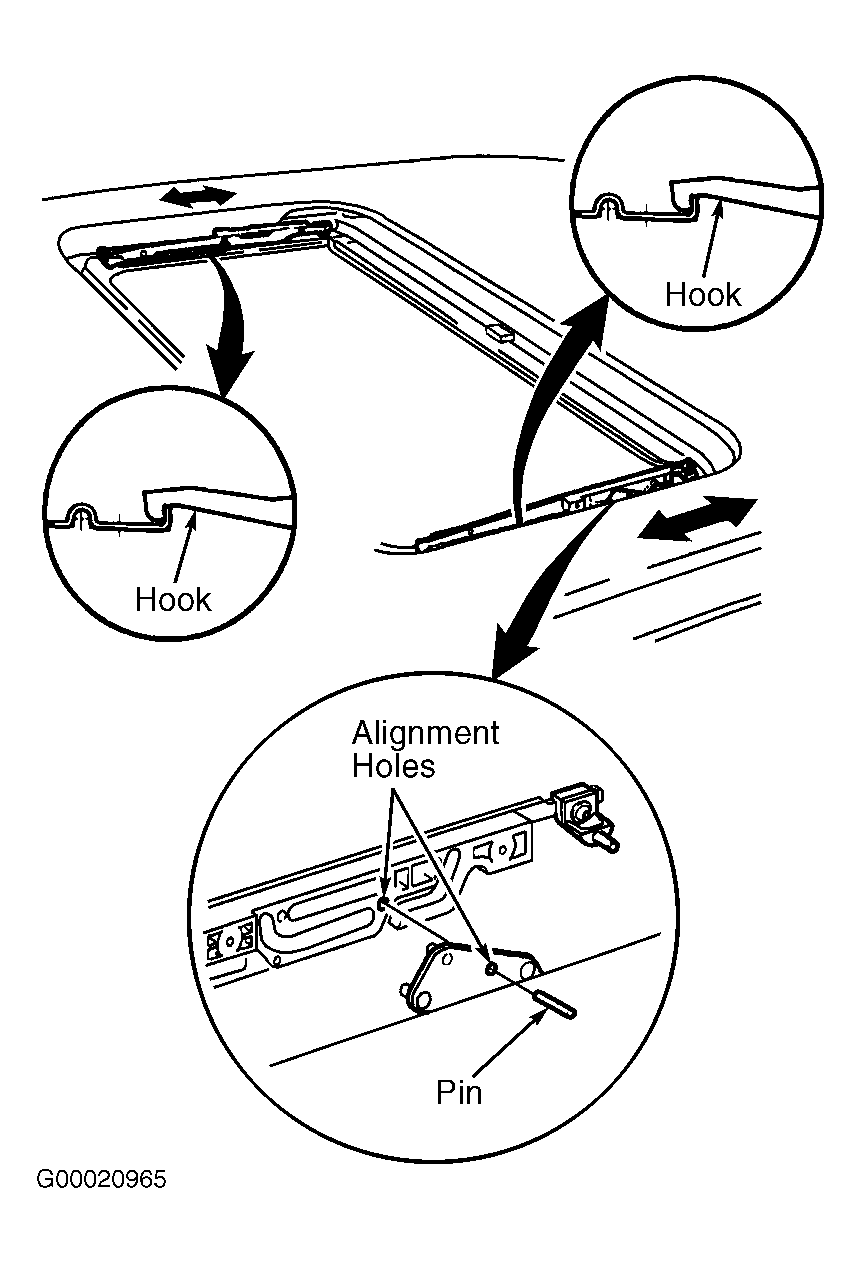

Fig 4: Aligning Drive Cable (Camry - USA Built)

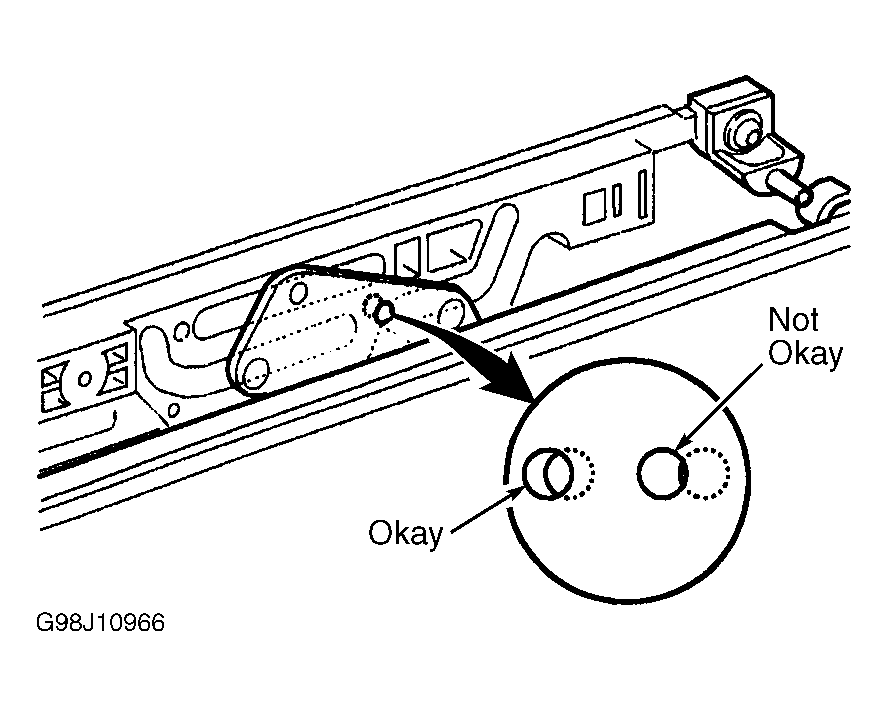

Fig 5: Checking Drive Cable Alignment (Camry - USA Built)
