Installation (2000 Celica)

Ensure rear seat outer belt floor anchors are installed as shown. See Fig 3. Tighten nuts and bolt to specification. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.

Fig 1: Removing Headlining (2000 Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

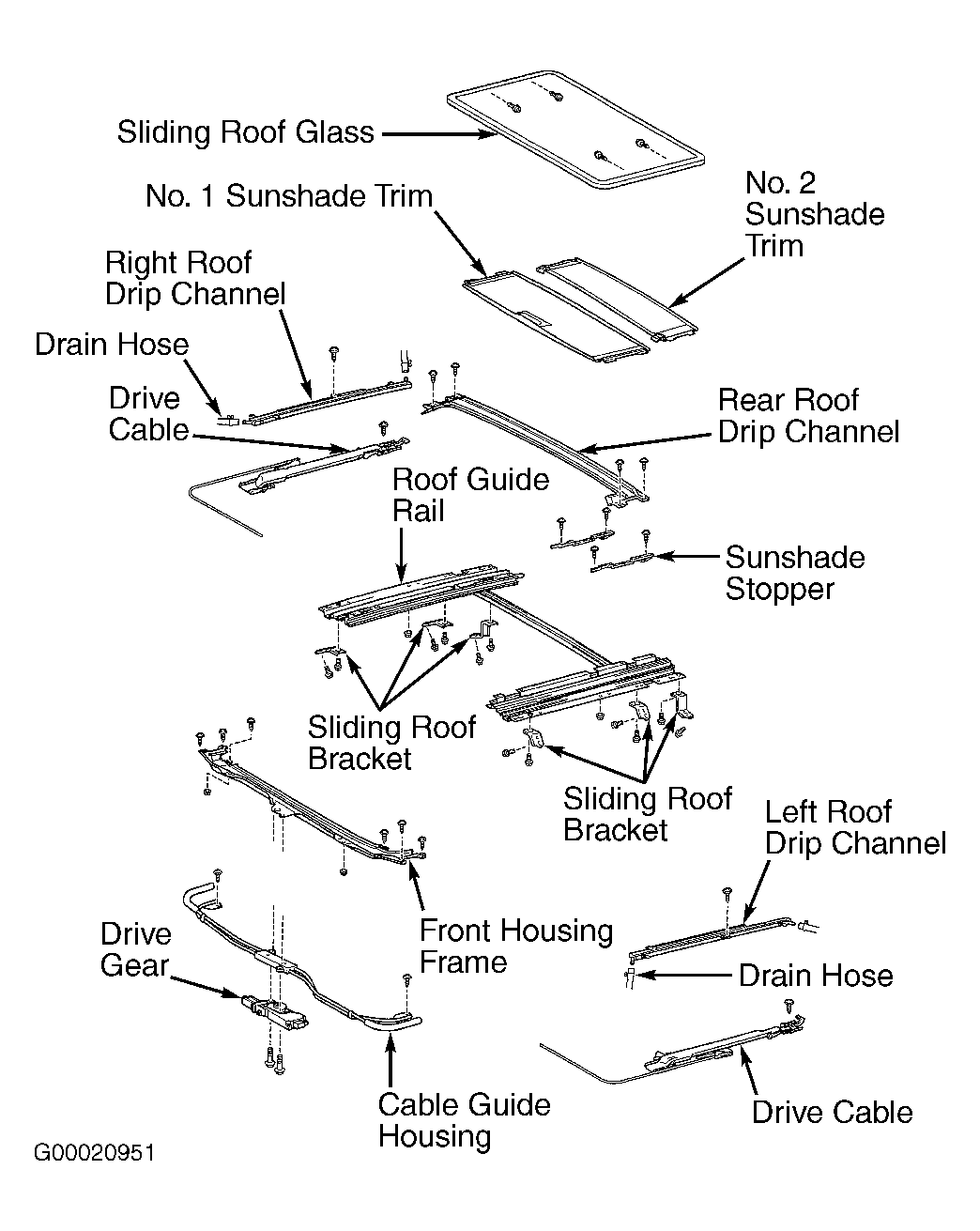

Fig 2: Exploded View Of Sun Roof Assembly (2000 Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Installing Rear Seat Outer Belt Floor Anchors (2000 Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

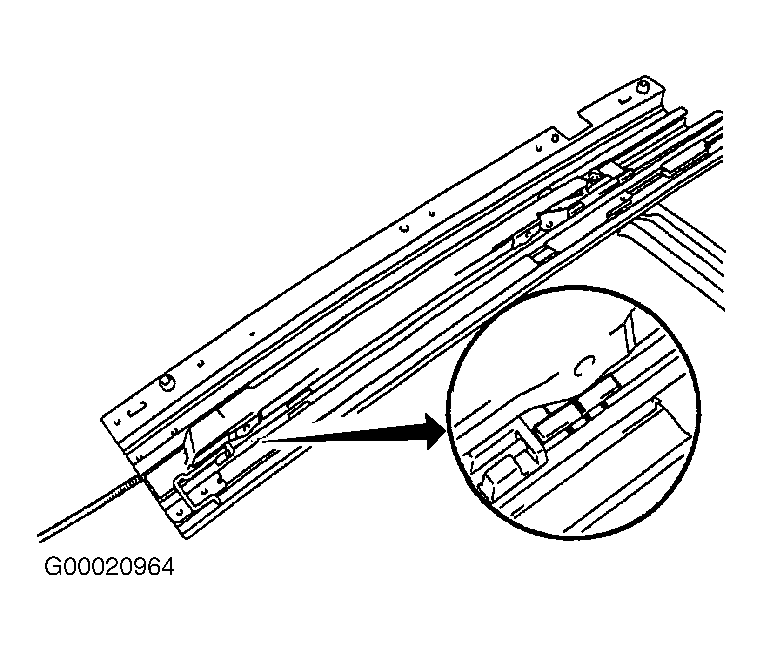

Fig 4: Aligning Drive Cable (2000 Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
