Installation (1999 Celica)

Prior to installing drive motor, remove cam plate cover from drive motor. See Figure. Turn drive gear until marks align, indicating a completely closed position. Reinstall cam plate cover. Tighten nuts and bolt to specification. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.

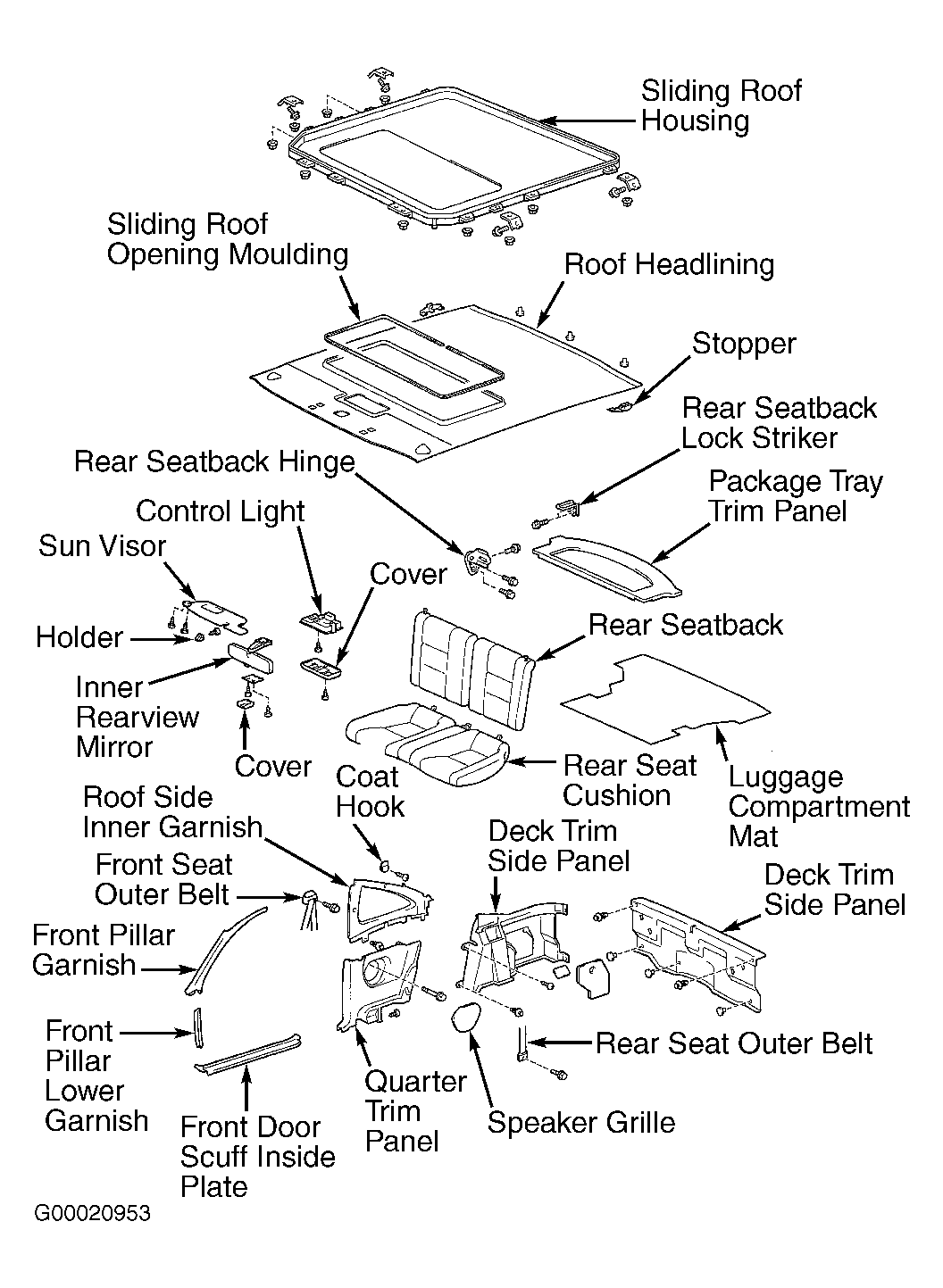

Fig 1: Remove Headlining (1999 Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

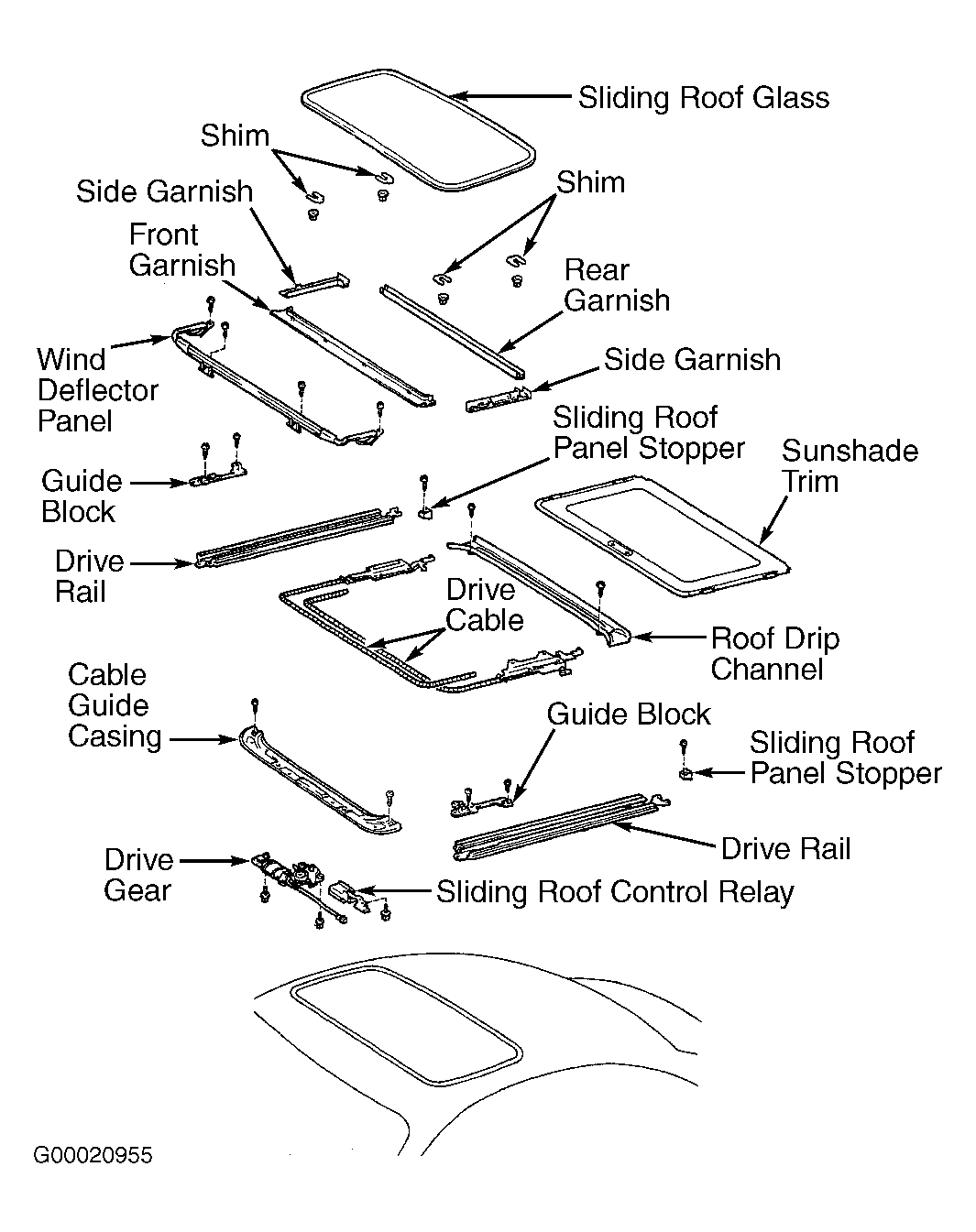

Fig 2: Exploded View Of Sun Roof Assembly (1999 Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Aligning Drive Cable (1999 Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
