Installation (1999 Avalon)

Prior to installing drive motor, remove cam plate cover from drive motor. See Fig 4. Turn drive gear until marks align, indicating a completely closed position. Reinstall cam plate cover. Tighten nuts and bolt to specification. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.

Fig 1: Removing Headlining (1999 Avalon Is Shown; 2000 Avalon Is Similar)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

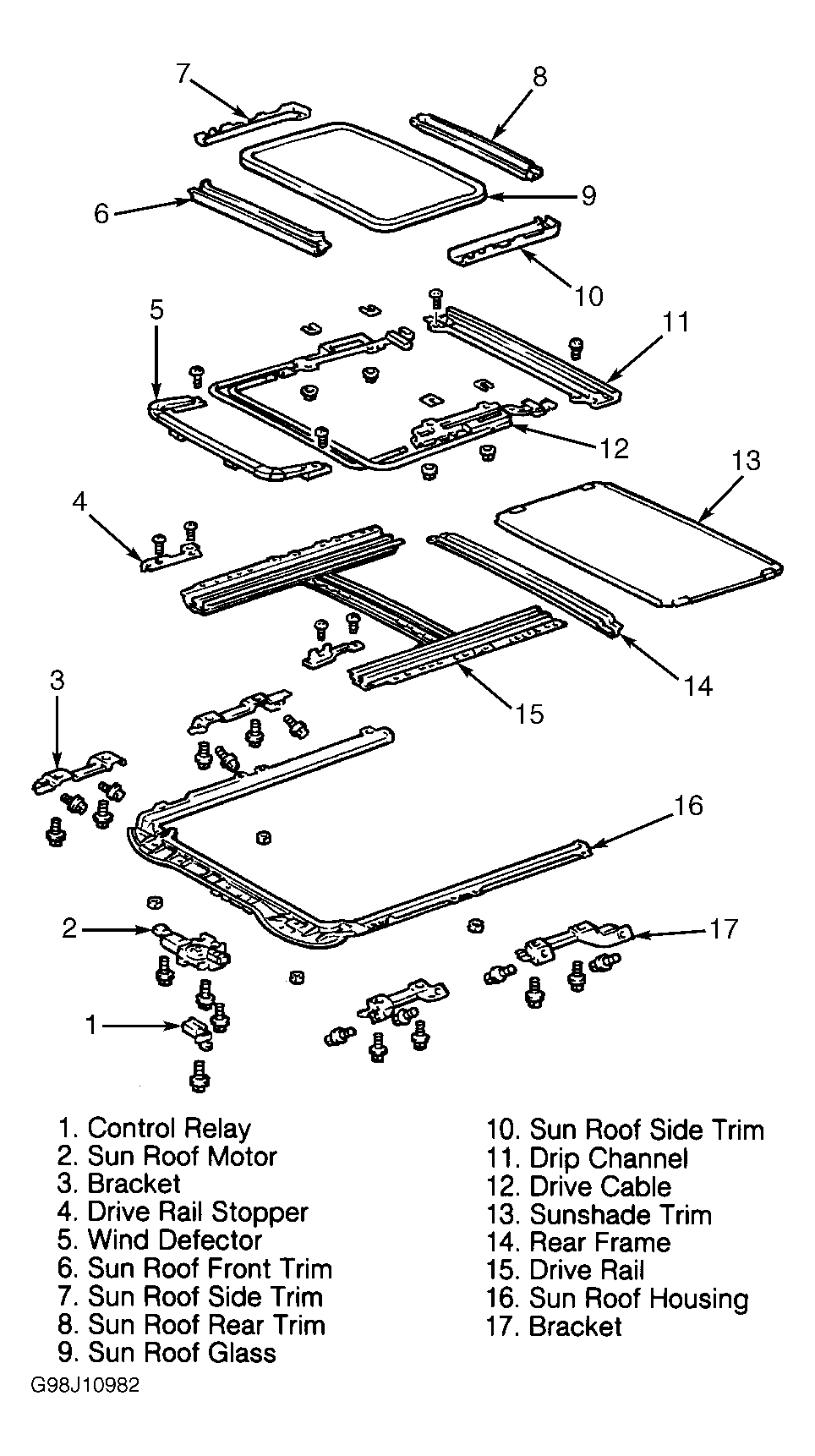

Fig 2: Exploded View Of Sun Roof Assembly (1999 Avalon)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

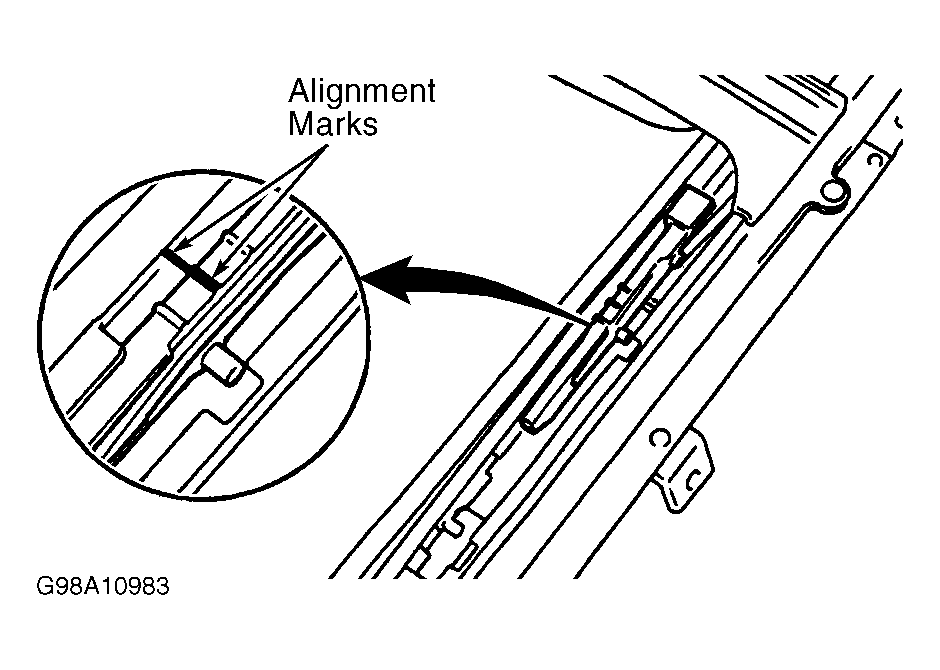

Fig 3: Aligning Drive Cable (1999 Avalon, Camry - Japan Built, Camry Solara & Sienna)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Aligning Sun Roof Drive Gear (1999 Avalon, 1999 Celica & RAV4 4-Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
