Disassembly & Reassembly (RAV4 2-Door)
- Remove screws and sun roof panel stoppers. Remove sunshade trim. Remove rear sun roof drip channel. Remove screws and guide rail stoppers. Slide drive cable rearward and remove it. Remove sun roof wind deflector panel. Remove 2 screws and guide blocks. Remove 6 screws and sun roof housing.

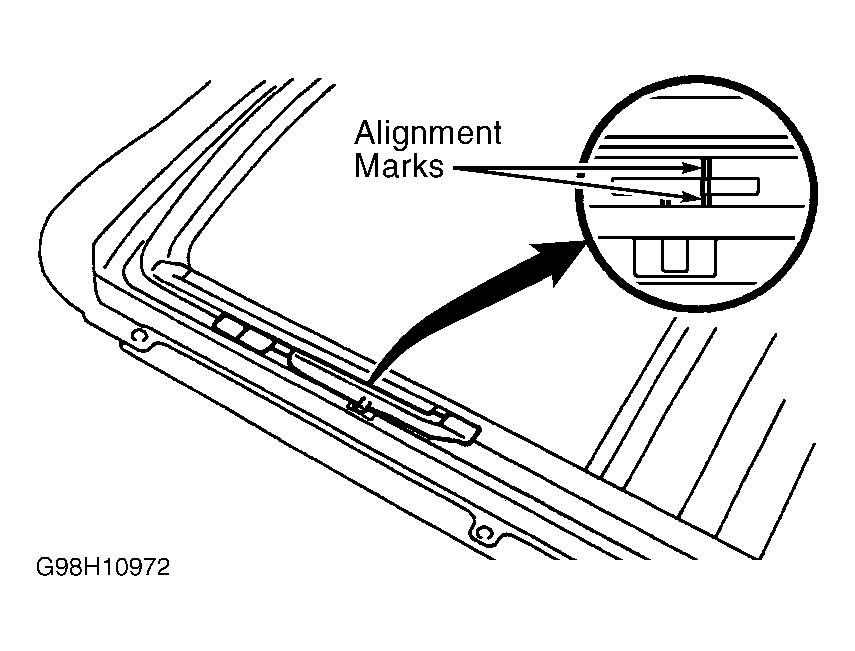

- To reassemble, adjust drive cables to a completely closed and tilted down position. Slide both cables forward or backward to align marks. See Figure. To complete reassembly, reverse disassembly procedure.
