Celica (1999), RAV4 (4-Door) & 4Runner

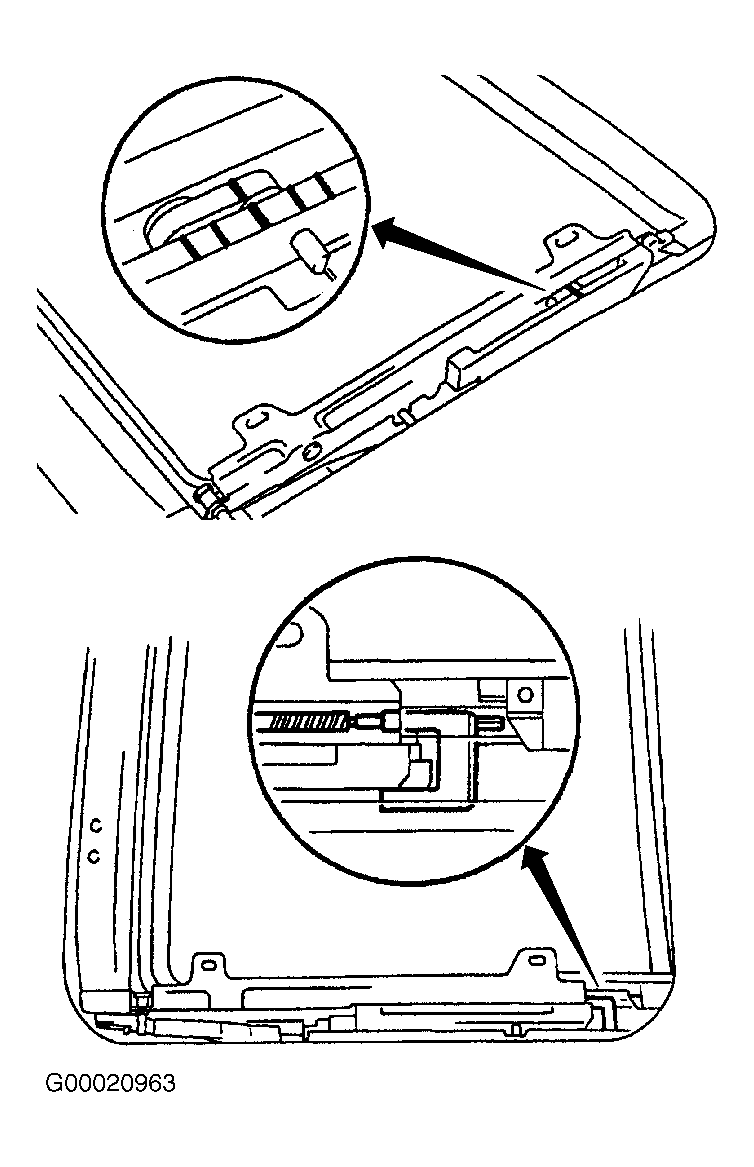

If front-to-rear position of sun roof is incorrect, pry out trim panels from left and right sides of sun roof opening. Loosen sun roof slider mount nuts. Move sun roof to front or rear as necessary. If front-to-rear position still does not adjust, remove sun roof glass and adjust guide rail. Using screwdriver, slide link front or rear to align marks. See Figure, Figure or Figure . Tighten sun roof slider mount nuts.
