Installing Steering Wheel Pad
- Connect air bag connector.

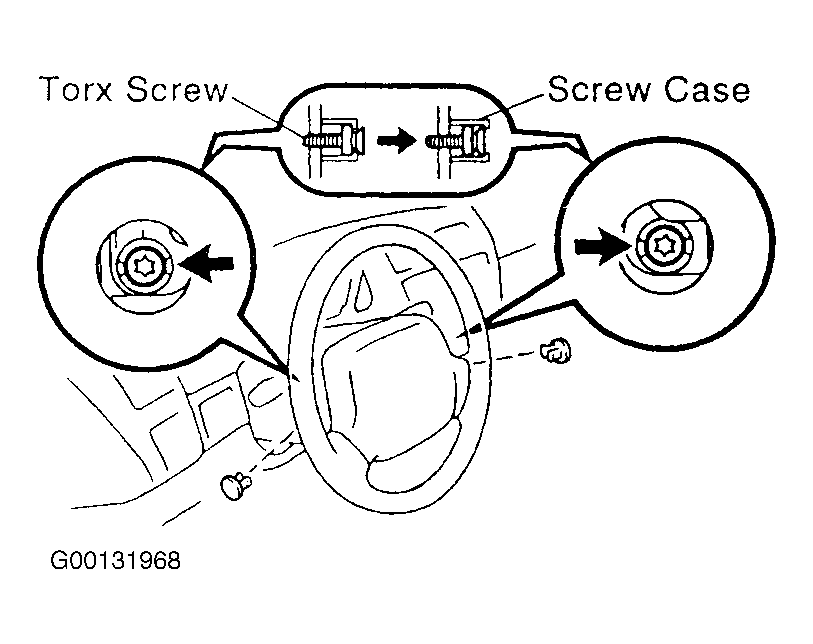

- Install the wheel pad after confirming that the circumference groove of the Torx screws is caught on the screw case.
- Using a Torx socket wrench, torque the 2 screws to 78 INCH lbs. (8.8 N.m). See Fig 1.
- Install the 2 steering wheel lower No. 2 covers.
CAUTION:
When installing the wheel pad, take care that the wirings do not interfere with other parts and are not pinched between other parts.
NOTE:
Make sure the wheel pad is installed to the specified torque.
NOTE:
If the wheel pad has been dropped, or there are cracks, dents or other defects in the case or connector, replace the wheel pad with a new one.
