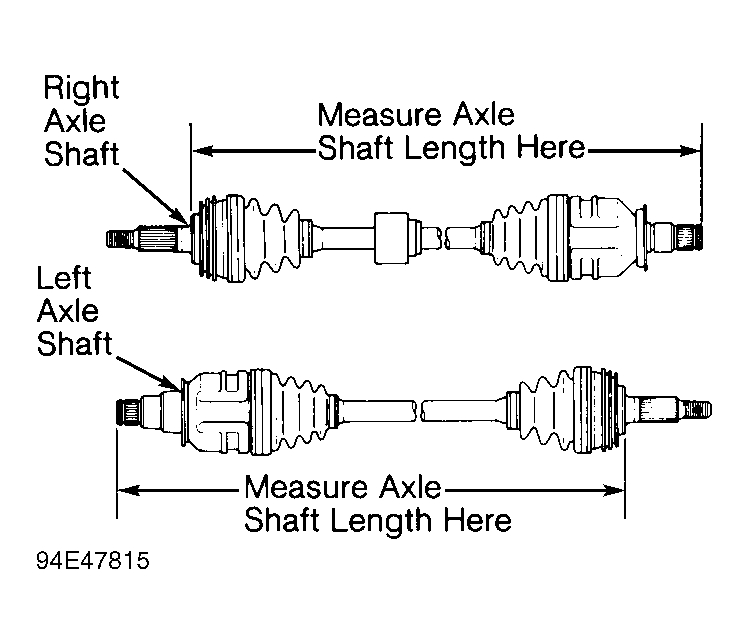

Axle Shaft Length Specifications
AXLE SHAFT LENGTH SPECIFICATIONS
| Application |
Length - In. (mm) |
| Avalon |
| Left Shaft |
22.992-23.150 (584-588) |
| Right Shaft |
34.630-34.788 (879.6-883.6) |
| Camry |
| 4-Cylinder |
| Left |
23.91-24.06 (607.2-611.2) |
| Right |
34.07-34.23 (865.3-869.3) |
| V6 |
| Automatic Transmission |
| Left Axle Shaft |
22.99-23.15 (584.0-588.0) |
| Right Axle Shaft |
34.00-34.79 (879.6-883.6) |
| Manual Transmission |
| Left Axle Shaft |
23.78-23.94 (599.5-603.5) |
| Right Axle Shaft |
34.23-34.39 (869.6-873.6) |
| Celica |
| 1.8L (7A-FE) Engine |
| Left Axle Shaft |
21.82-22.21 (554.2-564.2) |
| Right Axle Shaft |
34.32-34.73 (871.7-882.1) |
| 2.2L (5S-FE) Engine |
| Automatic Transmission |
| Left Axle Shaft |
22.51-22.90 (571.7-581.7) |
| Right Axle Shaft |
33.74-34.13 (857.0-867.0) |
| Manual Transmission |
| Left Axle Shaft |
22.34-22.73 (567.4-577.4) |
| Right Axle Shaft |
33.56-33.96 (852.5-862.5) |
| Corolla & Prizm |
| 1997 |
| Saginaw |
| Left Axle Shaft |
21.07-21.46 (535.2-545.2) |
| Right Axle Shaft |
33.56-33.95 (852.4-862.4) |
| Toyota Type Axle Shaft |
| Left Axle Shaft |
21.11-21.51 (536.3-546.3) |
| Right Axle Shaft |
32.49-33.89 (850.8-860.8) |
| 1998 |
| Left Axle Shaft |
21.07-21.46 (535.2-545.2) |
| Right Axle Shaft |
33.56-33.95 (852.4-862.4) |
| Paseo |
| Left Axle Shaft |
21.62-22.01 (549.1-559.1) |
| Right Axle Shaft |
30.68-31.08 (779.4-789.4) |
| Tercel |
| Left Axle Shaft |
21.22-21.62 (538.9-549.1) |
| Right Axle Shaft |
30.71-31.11 (780.1-790.1) |
