Avalon, Camry, Celica, Corolla 1.8L, Land Cruiser, Paseo, Previa, RAV4, Sienna, 1997 Supra Non-Turbo, Tacoma Except 2.4L, T100 & 4Runner

Ensure accelerator pedal is in released position and throttle valve is fully closed. Ensure no slack exists in throttle valve cable at throttle body. Measure distance between outer cable and stopper on throttle valve cable. See Fig 1.
Distance should be 0-.04" (0-1.0 mm). If distance is not within specification, loosen adjusting nuts on throttle valve cable. Tighten or loosen adjusting nuts until proper distance is obtained. Tighten adjusting nuts. Recheck distance once adjusting nuts are tightened.

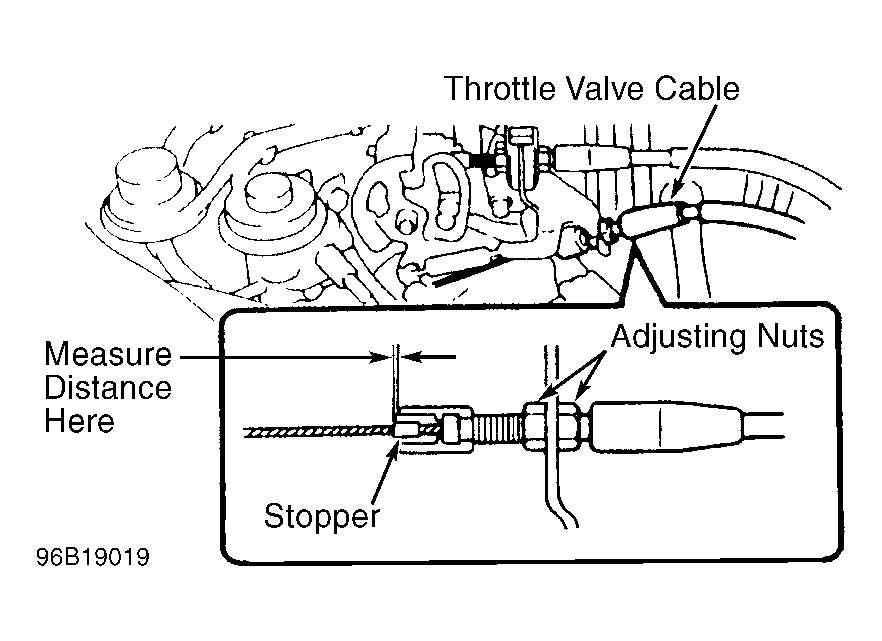

Fig 1: Measuring Distance On Typical Throttle Valve Cable (Avalon, Camry, Celica, Corolla 1.8L, Land Cruiser, Paseo, Previa, RAV4, 1997 Supra Non-Turbo, Tacoma Except 2.4L, T100 & 4Runner)
